Stability Control Sensor Cluster: Notes

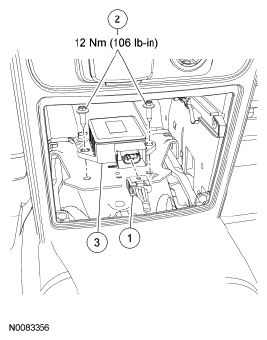

Fig 1: Stability Control Sensor Cluster Replacement Components With Torque Specifications
G06063951Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 2C011 Stability control sensor cluster electrical connector
2 W707722 Stability control sensor cluster bracket bolts (2 required)
3 3C187 Stability control sensor cluster
