Ignition Switch Lock Cylinder: Service and Repair

Ignition Lock Cylinder - Functional









Removal and Installation

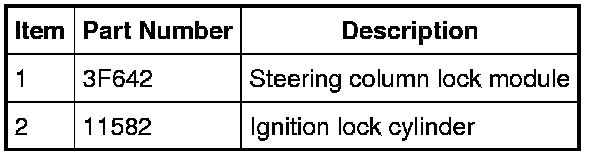

NOTE: For non-functional ignition lock cylinders, the steering column lock module has to be replaced.

1. Remove the Passive Anti-Theft System (PATS) transceiver.

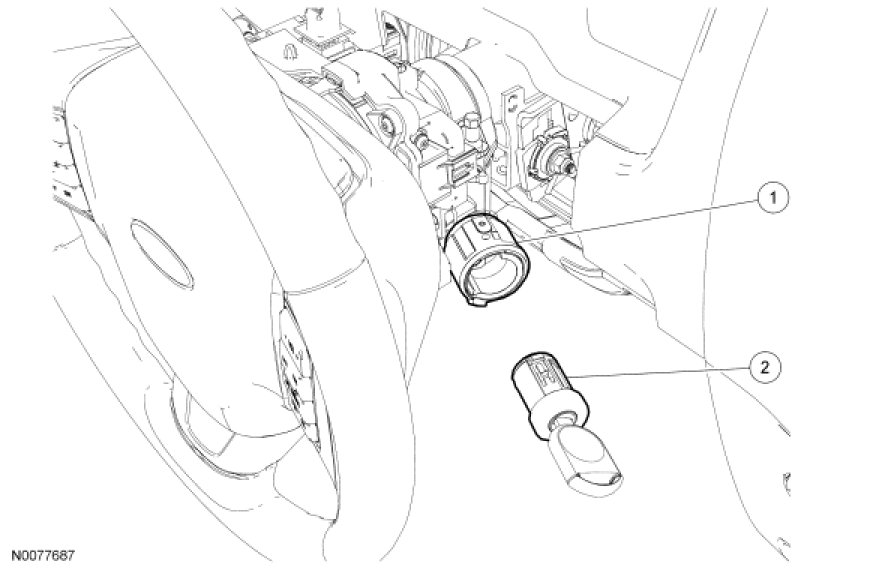

2. Remove the ignition lock cylinder.

1. Insert and turn the ignition key to the ACC position.

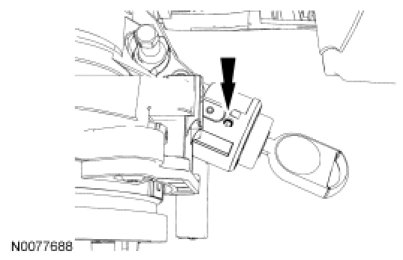

2. Using a suitable tool, press the detent.

3. Remove the lock cylinder.





3. If a new lock cylinder with keys is replaced, the new PATS keys must be programmed.

4. To install, reverse the removal procedure.
