Power Steering Pump: Notes
SPECIAL TOOLS - POWER STEERING PUMP
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer Set, Teflon® Seal | 211-D027 (D90P-3517-A) |
MATERIAL - POWER STEERING PUMP
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

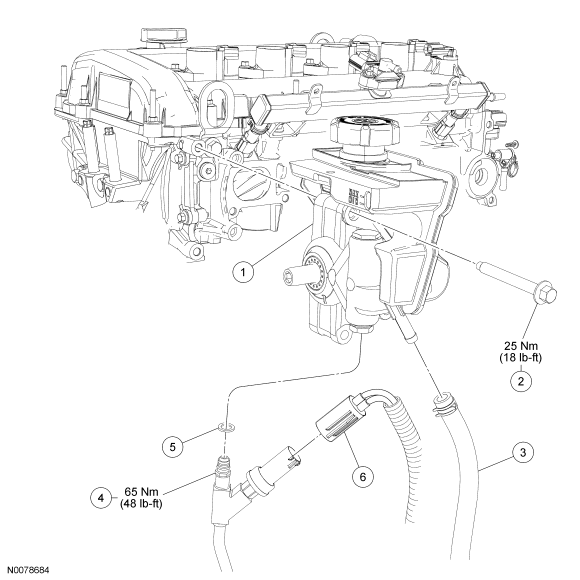

| Item | Part Number | Description |
|---|---|---|
| 1 | 3A674 | Power steering pump |
| 2 | W712054 | Power steering pump bolt (4 required) |
| 3 | 3A713 | Return hose |
| 4 | 3A719 | Pressure line and fitting |
| 5 | 388898 | Teflon® seal |
| 6 | - | Power steering pressure sensor electrical connector (part of 12A690) |
