Speed Control Switch: Notes

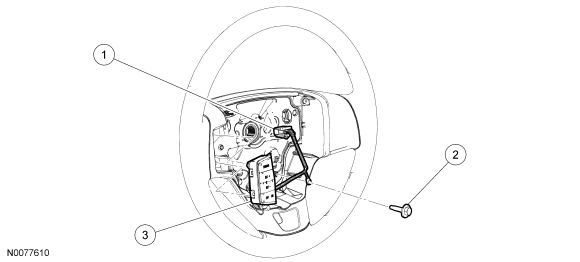

Fig 1: Identifying Speed Control Switch Components - Without Remote Audio Controls
GF0043456Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Speed control switches electrical connector (part of 9E740)
2 - Speed control switches ground screw
3 9E740 Speed control switches
Fig 2: Identifying Speed Control Switch Components - With Remote Audio Controls
GF0043457Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Speed control switches electrical connector (part of 9E740)
2 - Speed control switches ground screw
3 9E740 Speed control switches
