Hydraulic Control Unit (HCU): Notes
MATERIAL
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |
| High Temperature Nickel Anti-Seize Lubricant XL-2 (US); CXG-2-B (Canada) |
ESE-M12A4-A |

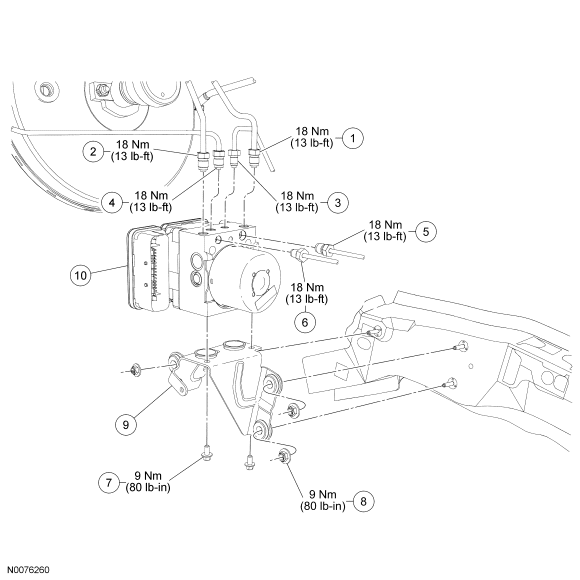

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Master cylinder primary brake tube fitting (part of 2C326) |
| 2 | - | Master cylinder secondary brake tube fitting (part of 2C326) |
| 3 | - | LH front brake tube fitting (part of 2C296B) |
| 4 | - | RH front brake tube fitting (part of 2C296A) |
| 5 | - | RH rear brake tube fitting (part of 9L291) |
| 6 | - | LH rear brake tube fitting (part of 9L291) |
| 7 | W500011 | Hydraulic control unit (HCU)-to-bracket bolt (2 required) |
| 8 | W701014 | HCU bracket-to-body nut (3 required) |
| 9 | 2B389 | HCU bracket |
| 10 | 2C286 | HCU |
