Exhaust System

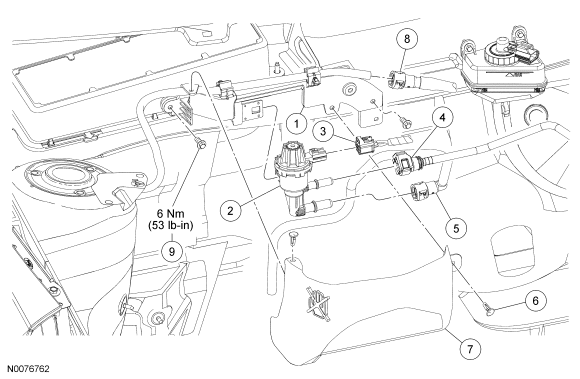

Fig 1: Exhaust System Components - Exploded View With Torque Specifications (1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9G863	Evaporative emissions (EVAP) canister purge valve bracket
2	9G641	EVAP canister purge valve (shown in figure removed for clarity)
3	14A464	EVAP canister purge valve electrical connector
4	-	Vapor jumper tube-to-EVAP canister purge valve quick connect coupling (part of 9D289)
5	-	Vapor jumper tube-to-EVAP canister purge valve quick connect coupling (part of 9L291)
6	W709438	Heat shield retainer (2 required)
7	-	Heat shield
8	-	Fuel tube quick connect coupling
9	5K282	EVAP canister purge valve bracket bolt (2 required)

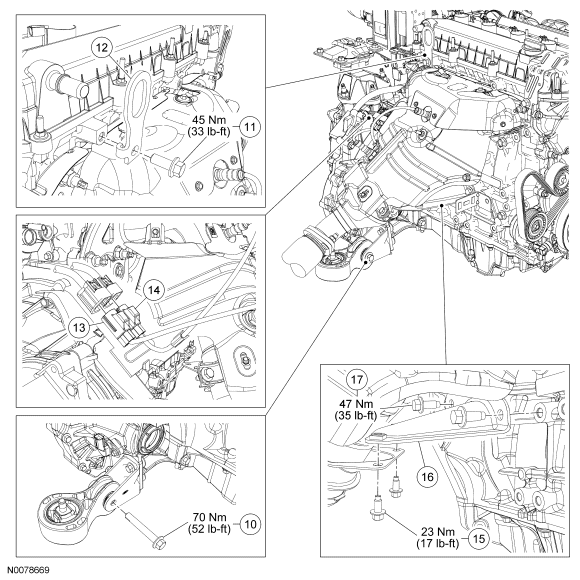

Fig 2: Exhaust System Components - Exploded View With Torque Specifications (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
10	W702801	Roll restrictor bolt
11	-	Engine lifting eye bolt
12	-	Engine lifting eye
13	14A464	Catalyst monitor sensor electrical connector
14	14A464	Heated oxygen sensor (HO2S) electrical connector
15	5849	Catalytic converter bracket-to-engine bracket bolt (2 required)
16	5K222	Catalytic converter-to-engine bracket
17	W710512	Catalytic converter-to-engine bracket bolt (2 required)

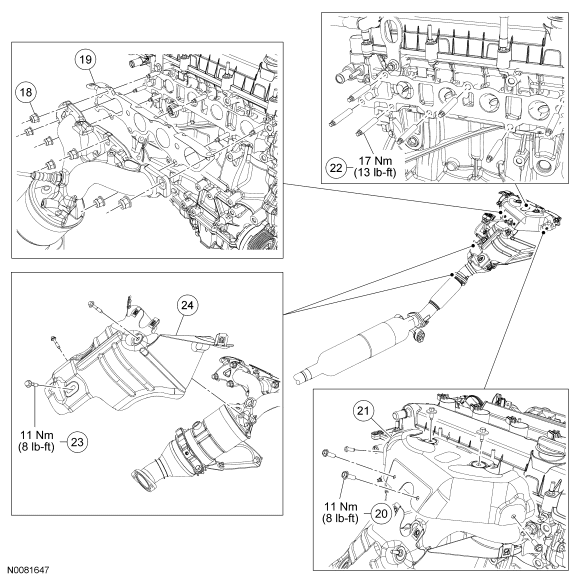

Fig 3: Exhaust System Components - Exploded View With Torque Specifications (3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
18	W703933	Catalytic converter-to-cylinder head nut (7 required)
19	9448	Catalytic converter manifold gasket
20	W503922	Upper heat shield bolt (6 required)
21	-	Upper heat shield (part of 5K282)
22	W704474	Catalytic converter-to-cylinder head stud (7 required)
23	W503922	Lower heat shield bolt (3 required)
24	5K282	Lower heat shield

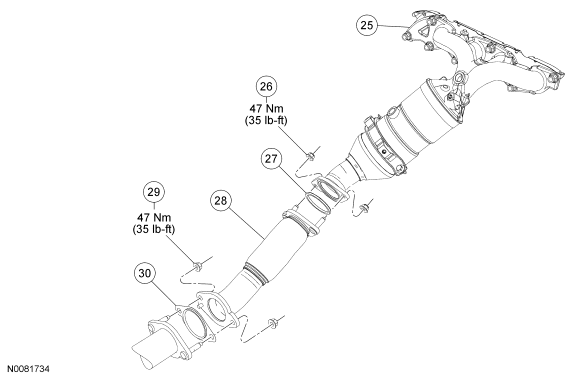

Fig 4: Partial Zero Emissions Vehicles (PZEV) and Early Build Non-PZEV With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
25	5G232	Catalytic converter
26	W705433	Catalytic converter-to-exhaust flexible pipe nut (2 required)
27	9451	Catalytic converter-to-exhaust flexible pipe gasket
28	5G203	Exhaust flex pipe
29	W705433	Exhaust flex pipe-to-muffler and tailpipe assembly nut (2 required)
30	9451	Exhaust flex pipe-to muffler and tailpipe assembly gasket

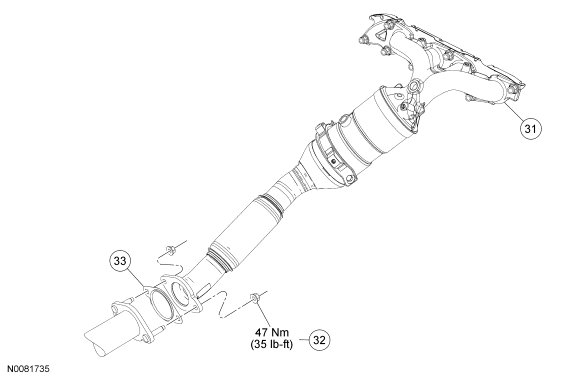

Fig 5: Late Build Non-PZEV With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
31	5G232	Catalytic converter
32	W705443	Catalytic converter-to-muffler and tailpipe assembly nut (2 required)
33	9451	Catalytic converter-to-muffler and tailpipe assembly gasket

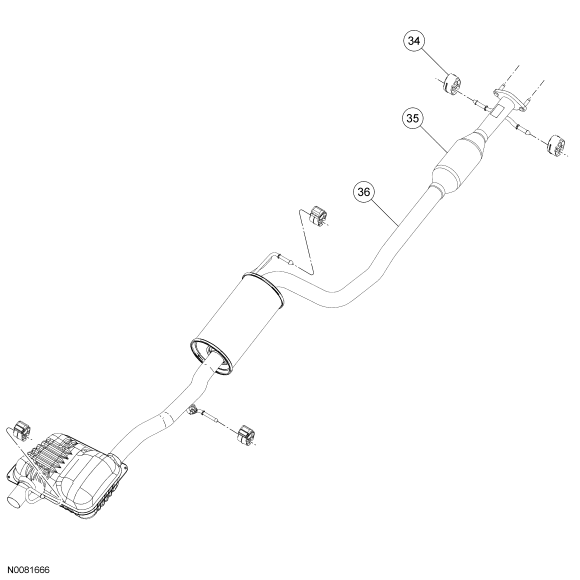

Fig 6: Late Build Non-PZEV With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
34	5A262	Muffler and tailpipe assembly insulator (5 required)
35	-	Underbody catalyst (partial zero emissions vehicles [PZEV]/resonator [non-PZEV])
36	5E292/5K254	Muffler and tailpipe assembly
