Traction Control Switch: Notes

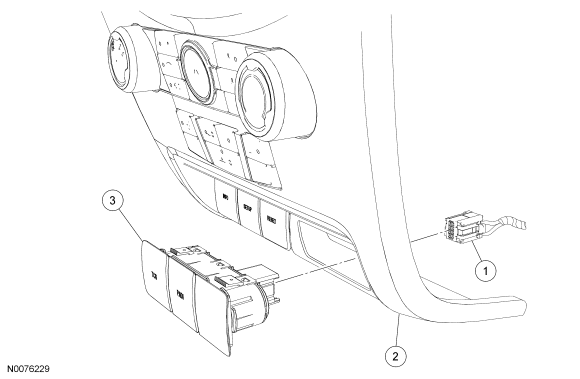

Fig 1: Traction Control Switch
GF0043021Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Traction control switch electrical connector (part of 14401)
2 7804302 Instrument panel center finish panel
3 13D730 Traction control switch
