Memory Set Switch




Memory Set Switch









Removal and Installation

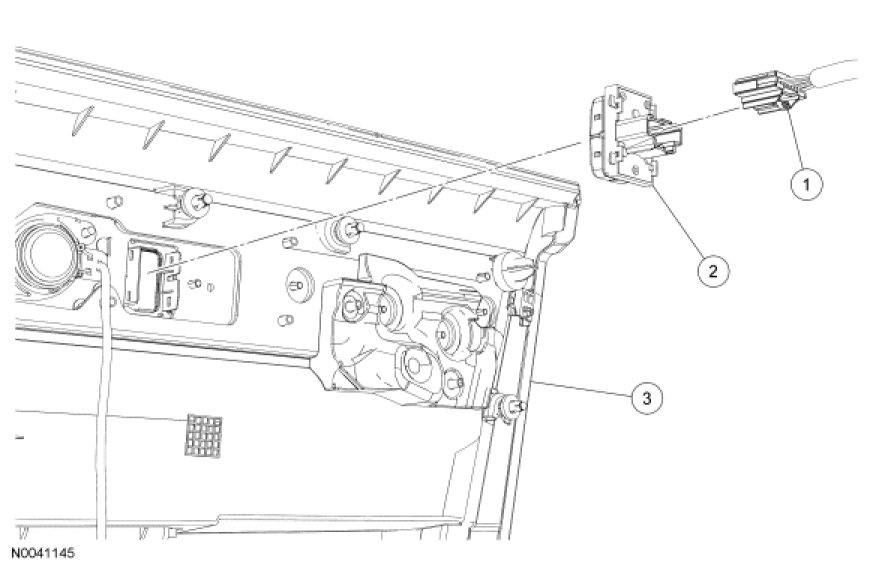

1. Remove the driver interior door panel.

2. Disconnect the electrical connector, release the 4 tabs and remove the memory SET switch.

3. To install, reverse the removal procedure.
