Ambient Air Temperature Sensor

Ambient Air Temperature Sensor









Removal and Installation

Fusion or Milan vehicles

1. Remove the front bumper cover.

MKZ vehicles

2. Remove the radiator grille upper sight shield.

All vehicles

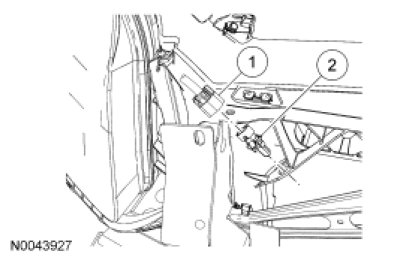

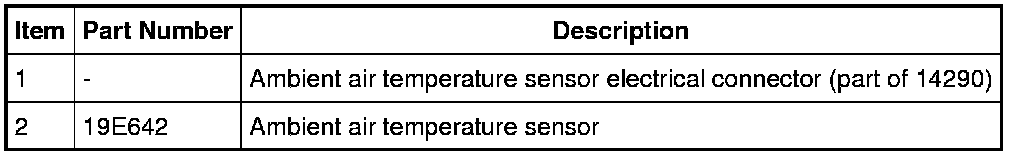

3. Disconnect the ambient air temperature sensor electrical connector.

4. Remove the ambient air temperature sensor.

5. To install, reverse the removal procedure.
