In-Vehicle Temperature Sensor

In-Vehicle Temperature Sensor

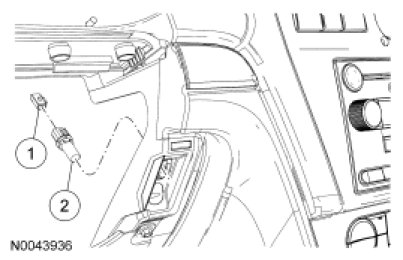

Removal and Installation

1. Remove the lower steering column shroud screws.

2. Remove the lower steering column shroud.

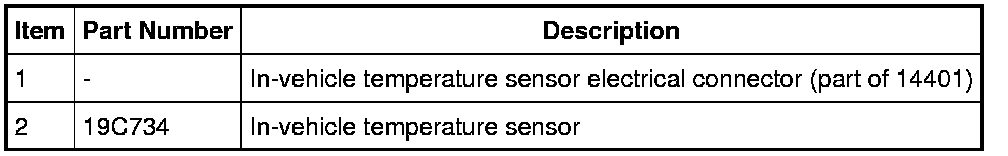

3. Disconnect the in-vehicle temperature sensor electrical connector.

4. Remove the in-vehicle temperature sensor.

5. To install, reverse the removal procedure.
