Antenna Control Module: Service and Repair

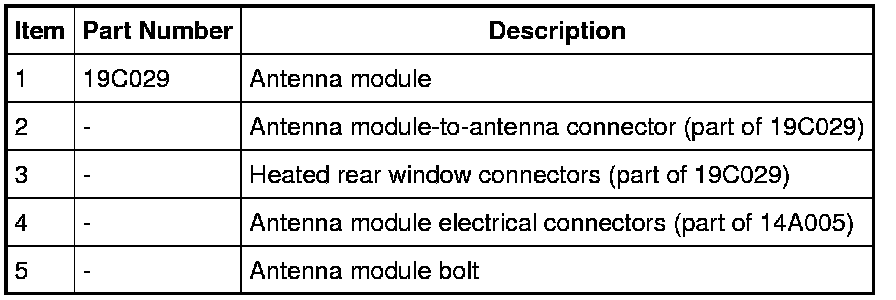

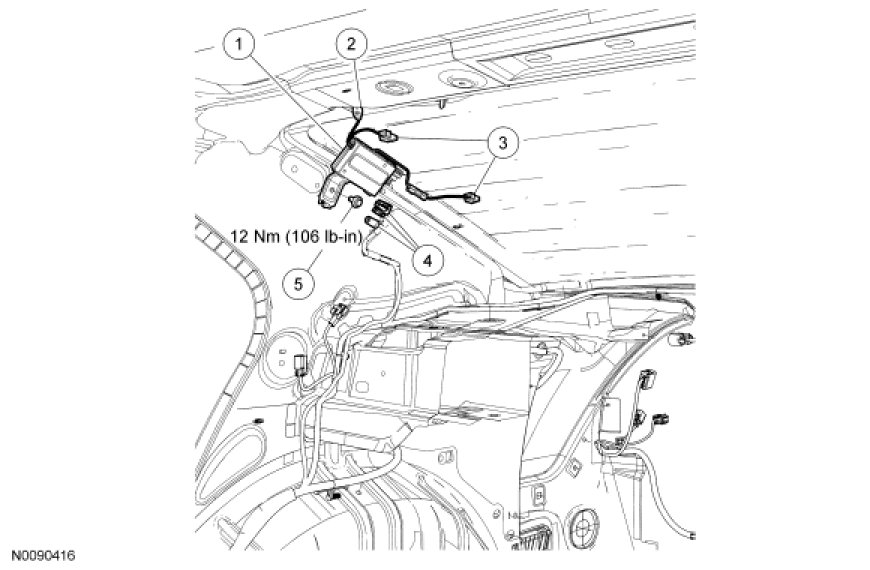

Antenna Module









Removal and Installation

1. Remove the RH C-pillar trim panel.

2. Disconnect the antenna module connectors.
- Disconnect the antenna cable-to-antenna module connector.

- Disconnect the antenna module electrical connectors.

- Disconnect the antenna module-to-antenna connector.

3. Remove the bolt and the antenna module.
- To install, tighten to 12 Nm (106 lb-in).

4. To install, reverse the removal procedure.
