Parking Assist Control Module: Service and Repair

Parking Aid Module (PAM)









Removal and Installation

1. Remove the LH interior C-pillar trim panel.

2. Remove the LH rear seat bolster.

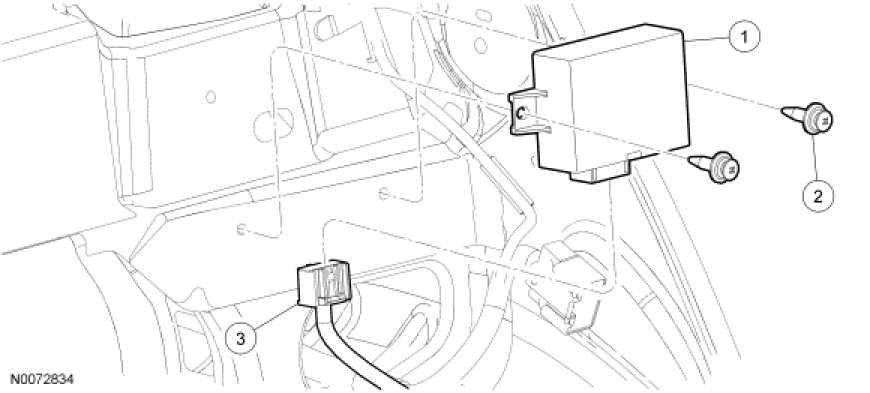

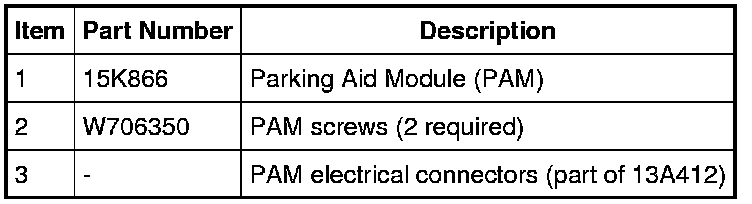

3. Remove the 2 screws and the Parking Aid Module (PAM).
- Disconnect the PAM electrical connectors.

4. To install, reverse the removal procedure.
