Windshield Washer Switch: Service and Repair

Steering Column Multifunction Switch

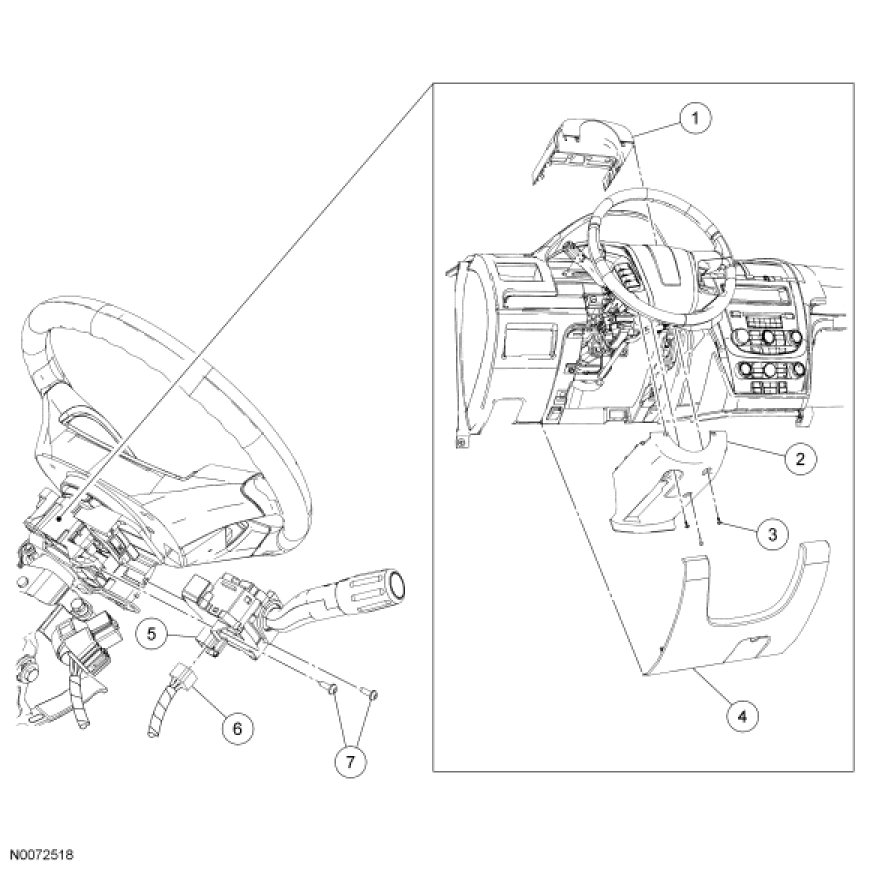

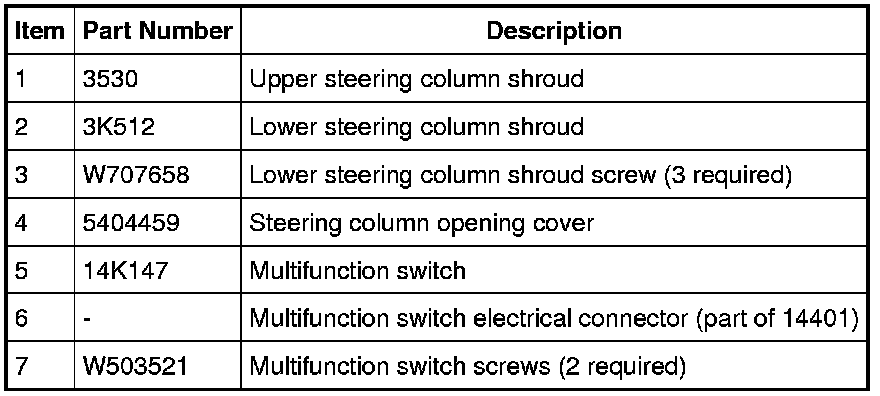

Removal and Installation

1. NOTE: The steering column opening cover is held in place by tabs that clip to the instrument panel.

Remove the steering column opening cover by pulling straight outward.

2. NOTE: Release the upper steering column shroud, by pressing inward on the sides of the shroud and lifting upwards.

Remove the upper steering column shroud.

3. Release the tilt lever, remove the 3 lower steering column shroud screws and then the shroud.

4. Disconnect the multifunction switch electrical connector.

5. Remove the 2 multifunction switch screws and the switch.

6. To install, reverse the removal procedure.
