Satellite Digital Audio Receiver System Module Connector - C4300

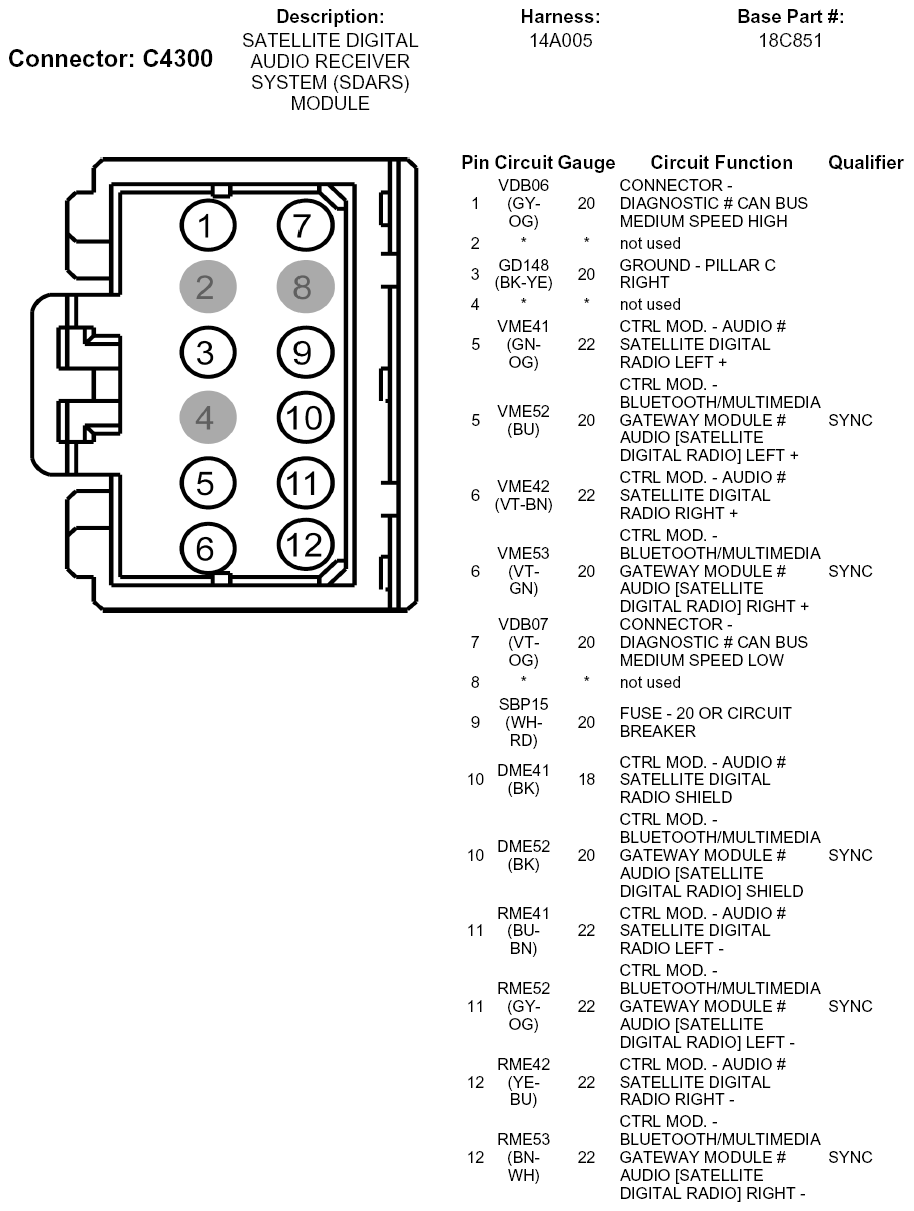

Fig 1: Satellite Digital Audio Receiver System Module Connector End View (C4300)
G05770139Courtesy of FORD MOTOR CO.
