6 Speed Transmission Control Module Connector - C1533

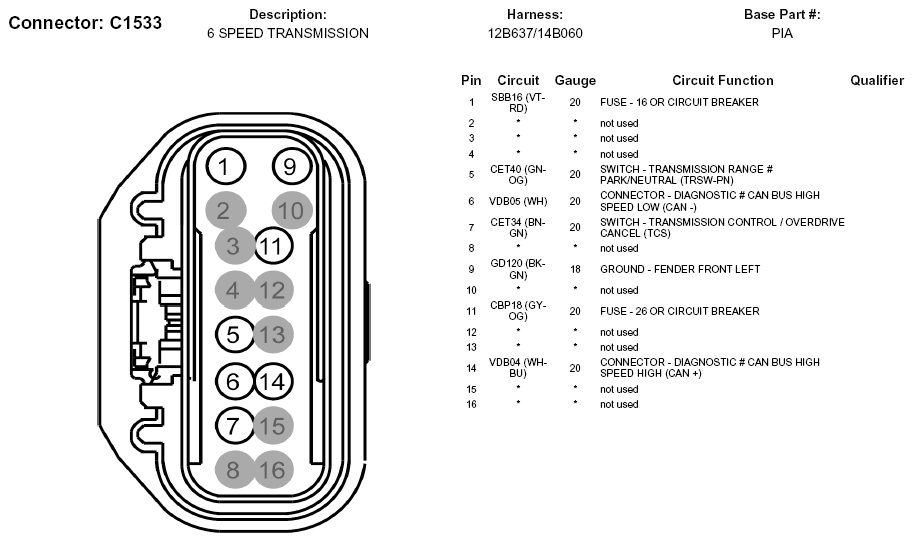

Fig 1: 6 Speed Transmission Control Module Connector End View (C1533)
G05770010Courtesy of FORD MOTOR CO.
