Occupant Classification Sensor 1 Connector - C3324

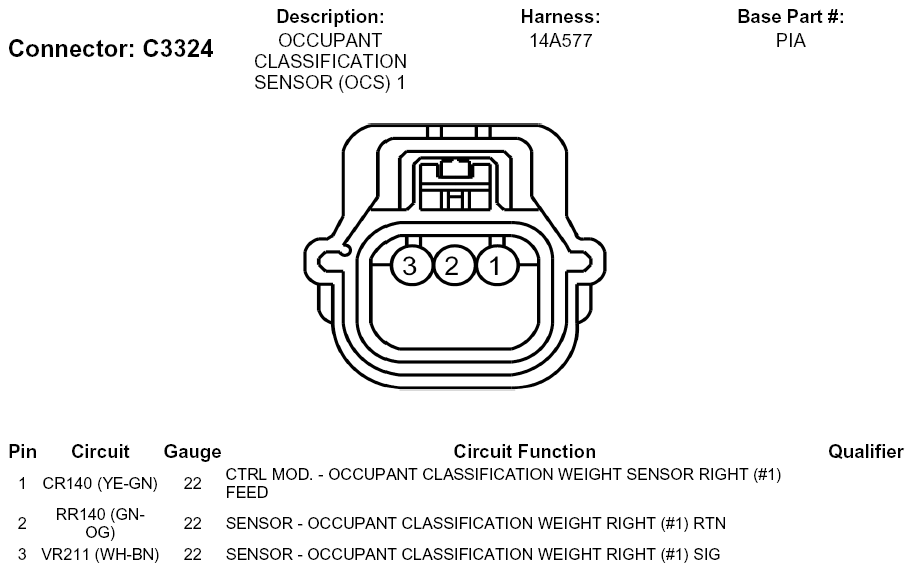

Fig 1: Occupant Classification Sensor 1 Connector End View (C3324)
G05770120Courtesy of FORD MOTOR CO.
