Occupant Classification Sensor 2 Connector - C3325

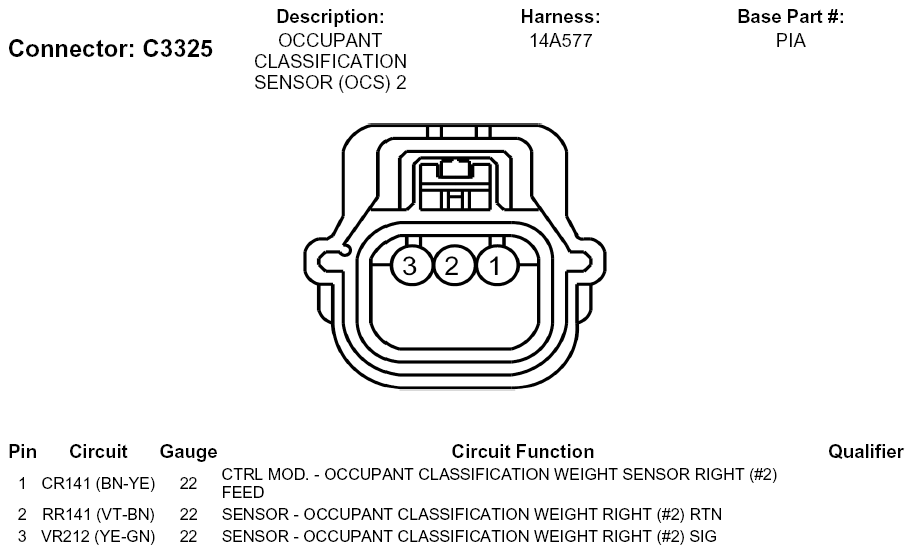

Fig 1: Occupant Classification Sensor 2 Connector End View (C3325)
G05770121Courtesy of FORD MOTOR CO.
