Stability Control Sensor Cluster: Notes

SPECIAL TOOLS

Illustration Tool Name
GF0000049
Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent diagnostic tool

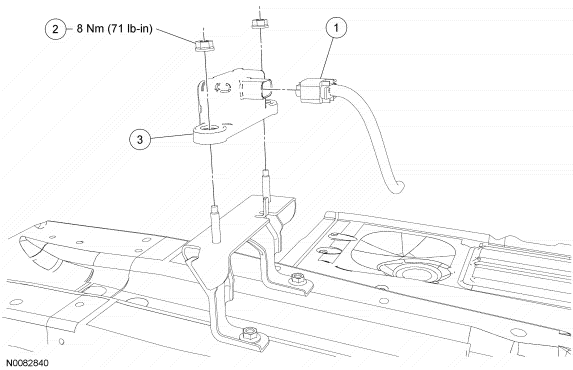

Fig 1: Locating Stability Control Sensor With Torque Specifications
G00379402Courtesy of FORD MOTOR CO.
Item Part Number Description
1 2C011 Stability control sensor cluster electrical connector
2 W707142 Stability control sensor cluster nut (2 required)
3 3C187 Stability control sensor cluster
