Audio Control Module (ACM) - MKZ: Notes

WARNING: This page is about a different car, the 2008 Mercury Milan, 2008 Lincoln MKZ, and 2008 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Navigation Audio Control Module (ACM) shown; others similar.

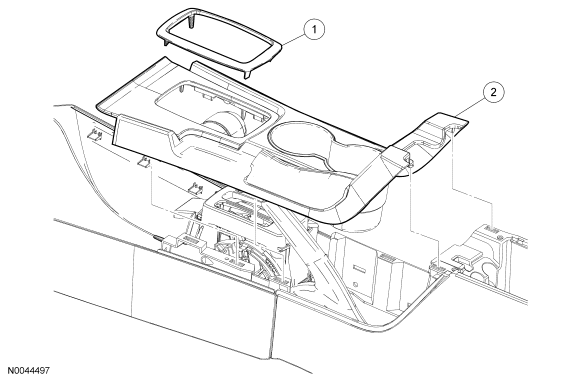

Fig 1: Exploded View Of Floor Console Finish Panel

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Floor console finish panel trim ring
2	-	Floor console finish panel

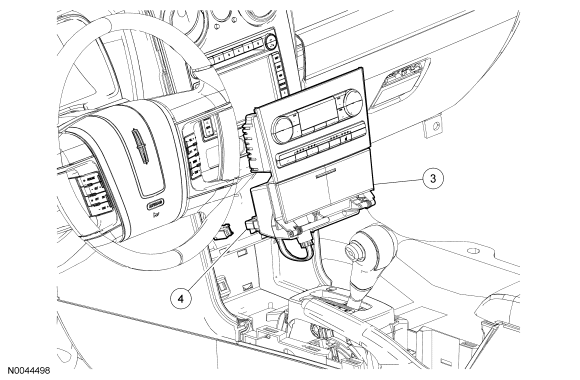

Fig 2: Exploded View Of Climate Control & Bezel Assembly

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
3	-	Climate control and bezel assembly
4	-	Climate control and bezel assembly electrical connectors (part of 14401)

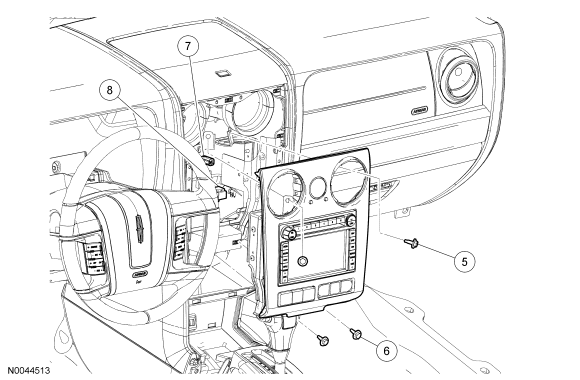

Fig 3: Exploded View Of ACM & Bezel Assembly

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
5	-	Audio Control Module (ACM) bracket upper bolts (2 required)
6	-	ACM bracket lower bolts (2 required)
7	-	Navigation antenna connector (part of 14401)
8	-	ACM electrical connectors (part of 14401)

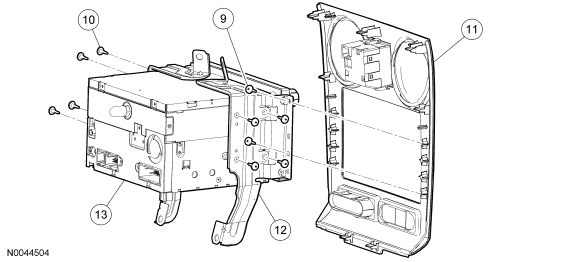

Fig 4: Exploded View Of ACM

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
9	-	Audio Control Module (ACM) bracket-to-bezel screws (4 required)
10	-	ACM bracket-to-ACM screws (8 required)
11	-	Instrument panel center finish panel
12	-	ACM bracket (2 required)
13	18801	ACM
