Gearshift Lever: Notes

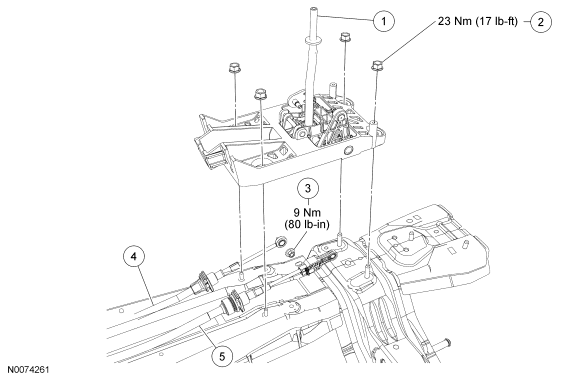

Fig 1: Exploded View Of Gearshift Lever With Torque Specifications
GF0041480Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7210 Gearshift lever assembly
2 - Gearshift lever nut (4 required)
3 - Shift cable nut
4 7E395 Shift cable
5 7E395 Selector cable
