Occupant Classification Sensor Connector - C3159

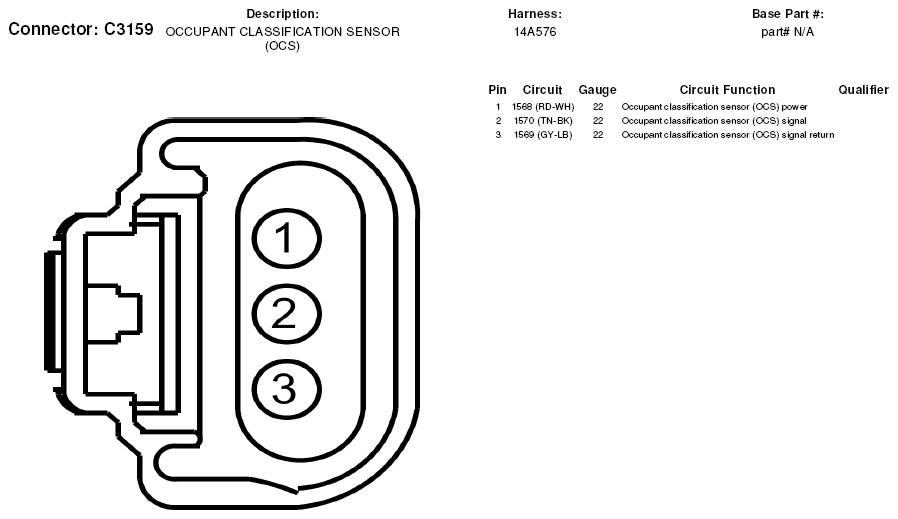

Fig 1: Occupant Classification Sensor Connector End View (C3159)
G05602990Courtesy of FORD MOTOR CO.
