Steering Gear: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Lifting Bracket, Engine	303-D087 (D93P-6001-A1)
Courtesy of FORD MOTOR CO.	Support Bar, Engine	303-F070
Courtesy of FORD MOTOR CO.	Tie-Rod End Remover	211-105 (T85M-3395-A)

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

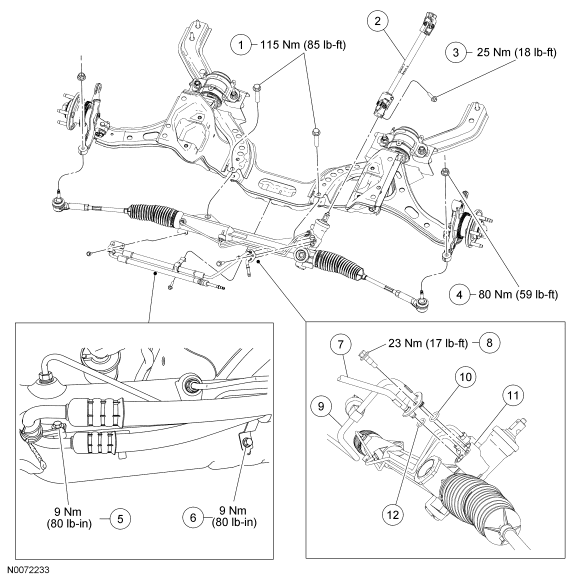

Fig 1: Exploded View Of Steering Gear With Torque Specifications

GF0046487

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W10909	Steering gear bolts (2 required)
2	3B676	Steering column lower shaft
3	W704980	Steering column coupling-to-steering gear bolt
4	W705606	Tie-rod end nut (2 required)
5	W505255	Pressure line bracket-to-steering gear bolt (4.6L and 5.4L)
6	W505255	Pressure line bracket-to-crossmember bolt
7	3A713	Power steering return line
8	W707622	Power steering line clamp plate bolt
9	3A719	Power steering pressure line
10	3F886-AA	O-ring seal
11	3504	Steering gear
12	3F886-BA	O-ring seal
