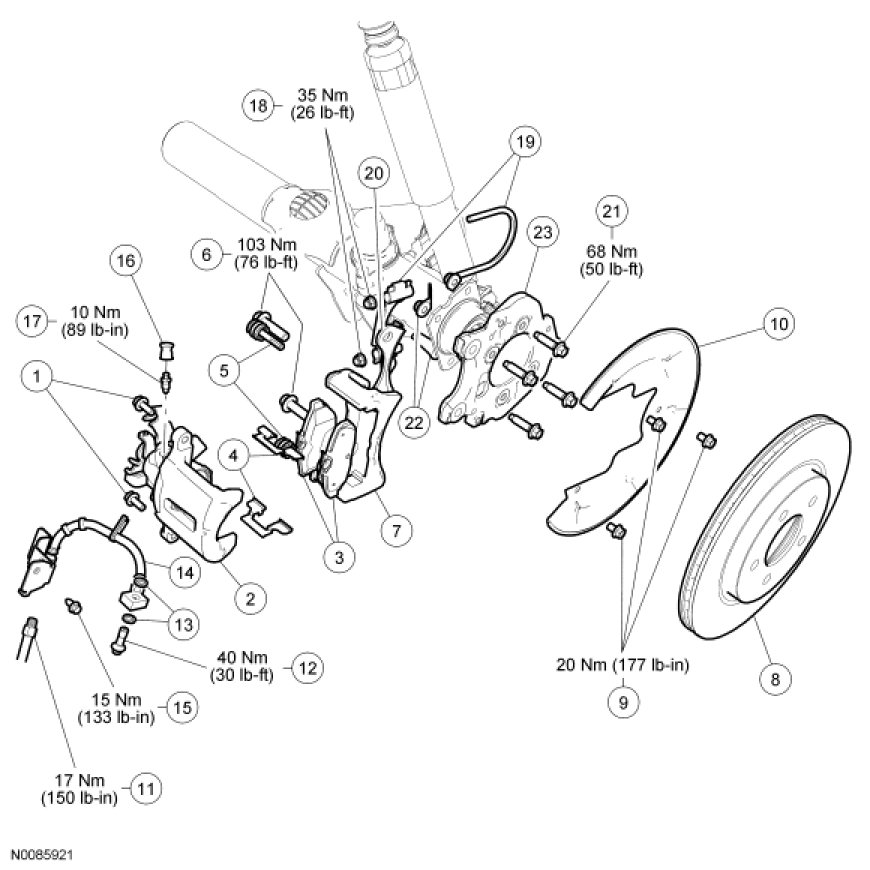

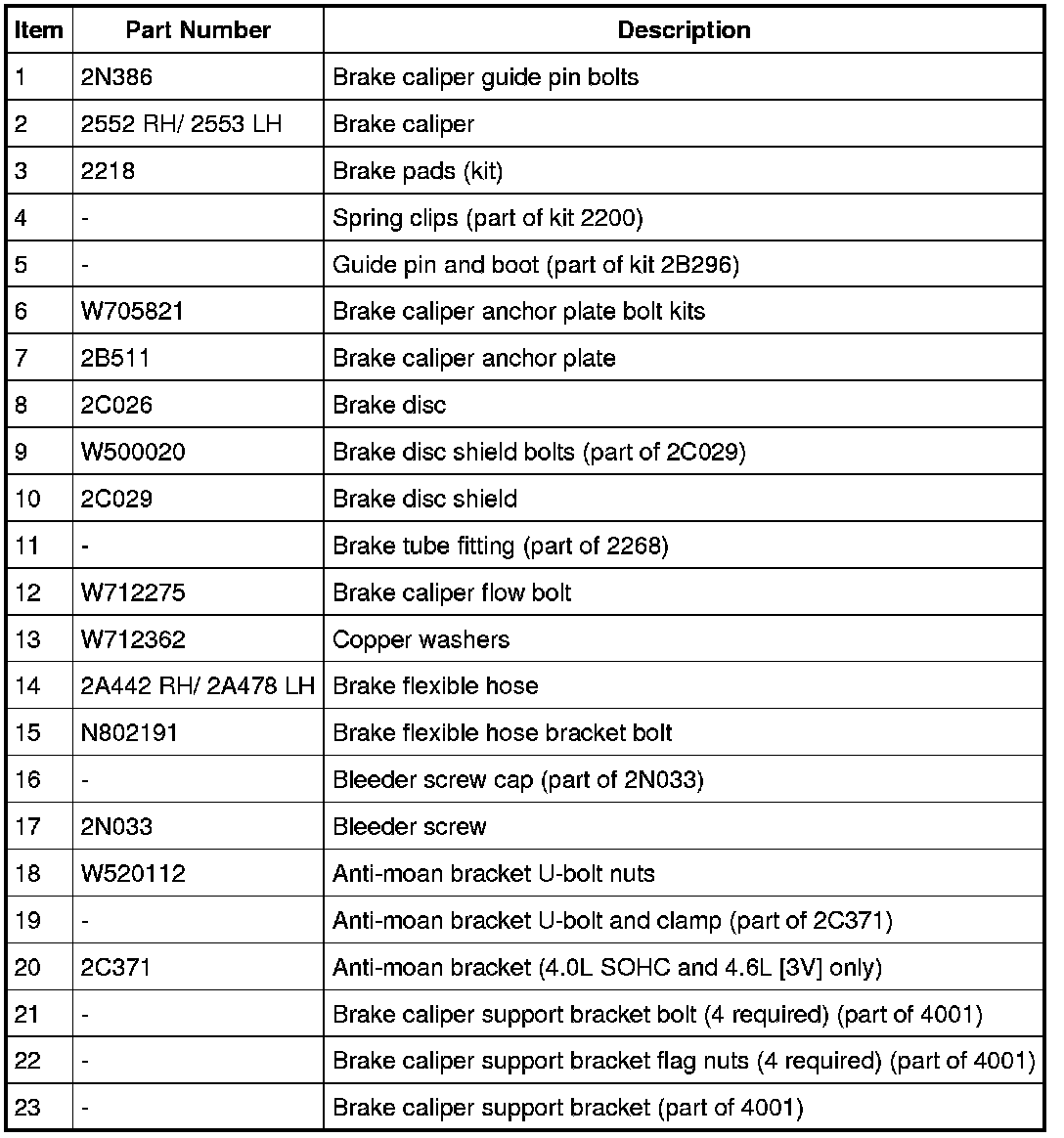

Disc Brake System - Exploded View




Disc Brake System - Exploded View

NOTE: 4.0L SOHC and 4.6L (3V) shown, 5.4L similar.










1. For additional information, refer to the procedures.
