Power Door Lock Switch: Service and Repair

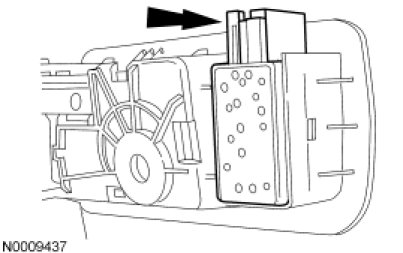

Door Lock Control Switch

Removal and Installation

1. Remove the interior door handle. For additional information, refer to Interior Door Handle Interior Door Handle.

2. Remove the door lock control switch from the interior door handle.





3. To install, reverse the removal procedure.
