Exterior Lighting Module: Service and Repair

Ballast

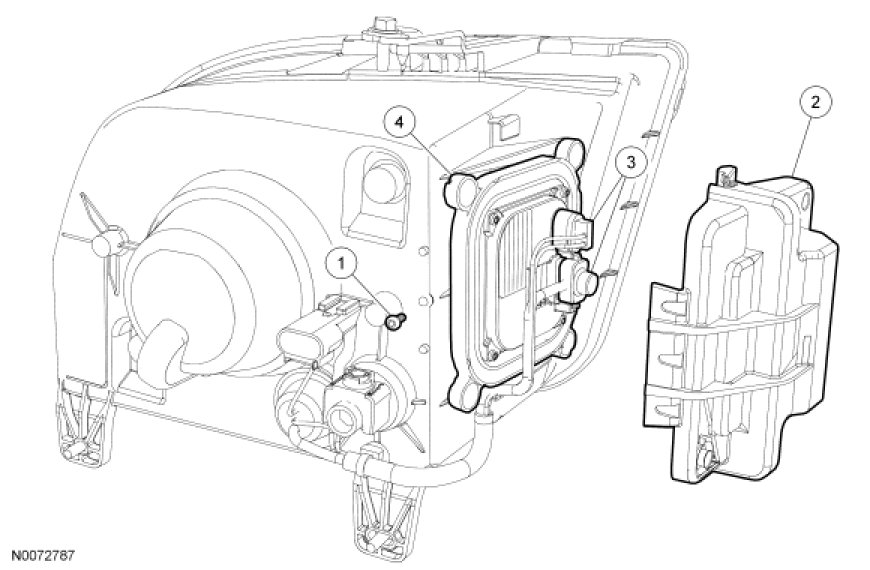

NOTE: GT shown, others similar.










Removal and Installation

1. Remove the headlamp assembly. For additional information, refer to Headlamp Assembly Service and Repair.

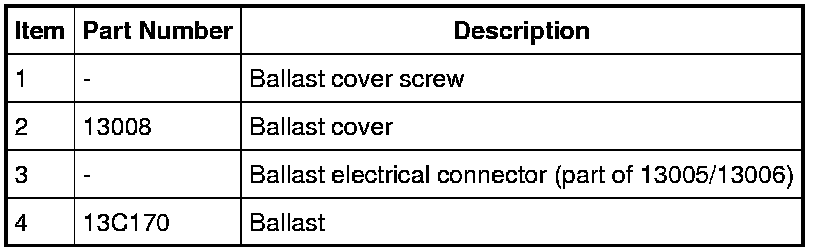

2. Remove the screw (2 screws for Shelby GT500) and ballast cover.

3. Disconnect the electrical connectors and remove the ballast.

4. To install, reverse the removal procedure.
