Glow Plug Module: Notes

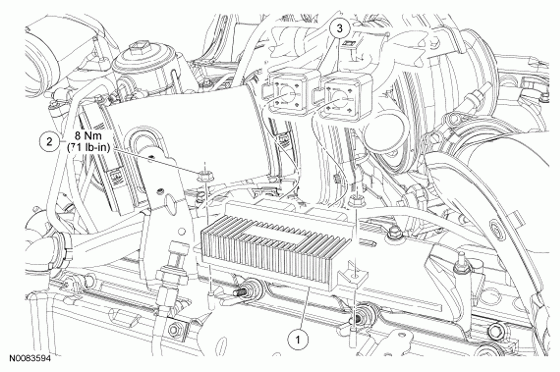

Fig 1: Glow Plug Module With Torque Specifications
G06139844Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 12B533 Glow plug module
2 W300049 Glow plug module nut (2 required)
3 14A464 Glow plug module electrical connectors (part of 12B637)
