Fuel Level Sensor: Service and Repair




Fuel Tank and Filler Pipe - Exploded View

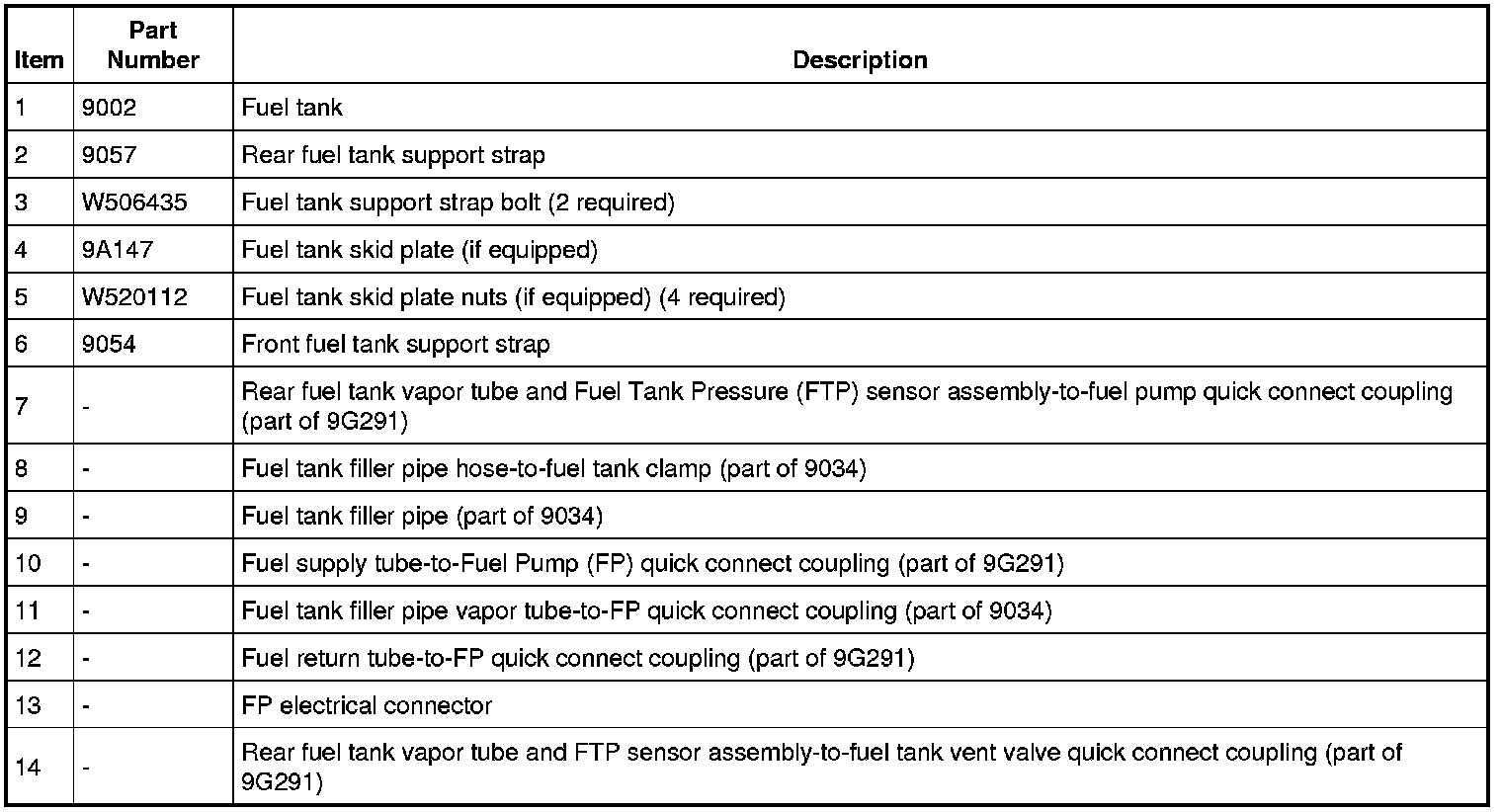

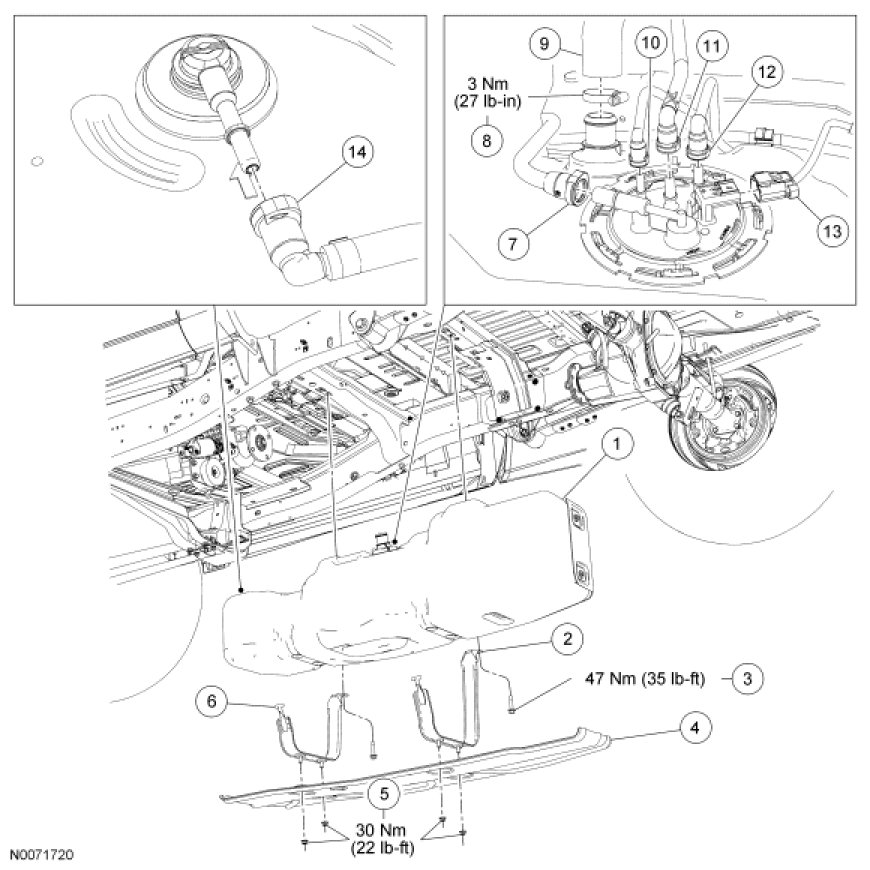

Fuel Tank

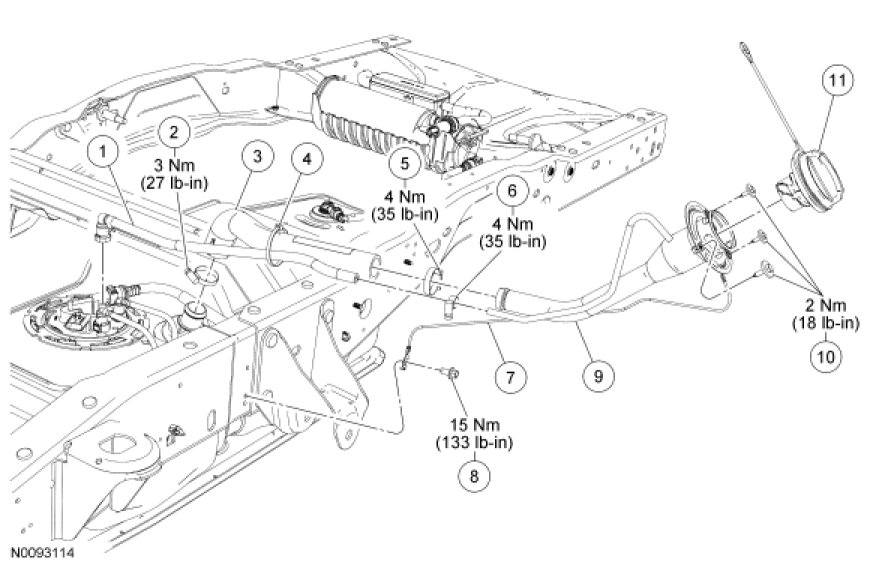

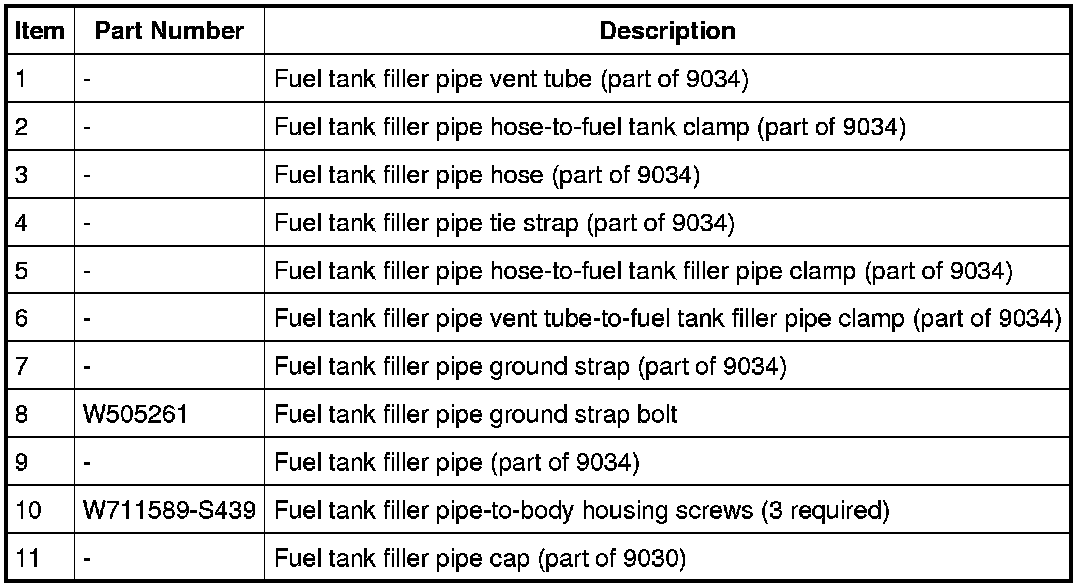

Fuel Tank Filler Pipe

NOTE: Vehicle body removed from art for clarity.










1. For additional information, refer to the procedures.
