Power Mirror Switch: Service and Repair

Exterior Mirror Control Switch

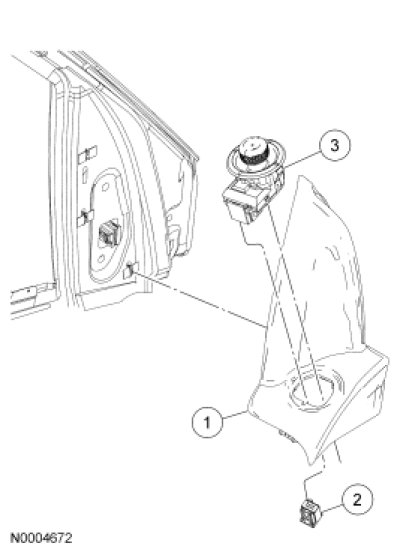

NOTE: Taurus X shown, Sable and Taurus similar.










Removal and Installation

1. Remove the sail panel.
- Disconnect the electrical connector.

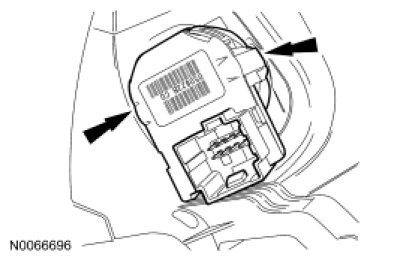

2. Depress the 2 locking tabs and remove the exterior mirror control switch.





3. To install, reverse the removal procedure.
