Cabin Temperature Sensor / Switch: Service and Repair

In-Vehicle Temperature Sensor

Taurus/Sable










Taurus X









Removal and Installation

Taurus/Sable

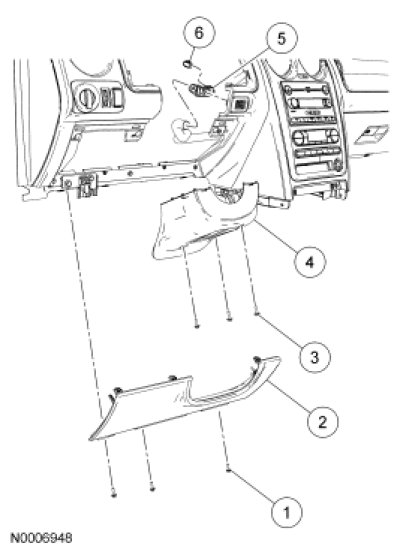

1. Remove the instrument cluster finish panel. Instrument Cluster / Carrier

Taurus X

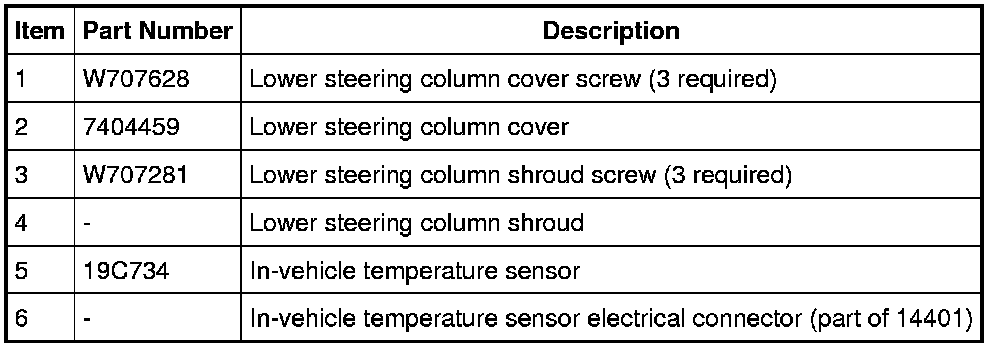

2. Remove the 3 lower steering column cover screws.

3. Remove the lower steering column cover.

4. Remove the 3 lower steering column shroud screws.

5. Remove the lower steering column shroud.

6. Disconnect the in-vehicle temperature sensor electrical connector.

All vehicles

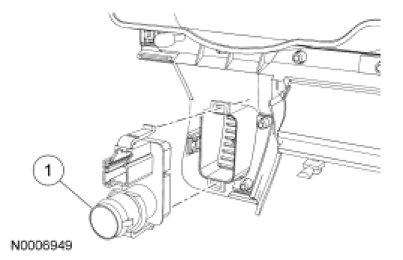

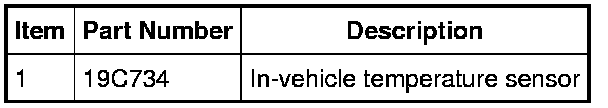

7. Remove the in-vehicle temperature sensor.

8. To install, reverse the removal procedure.
