Windshield Washer Switch: Service and Repair

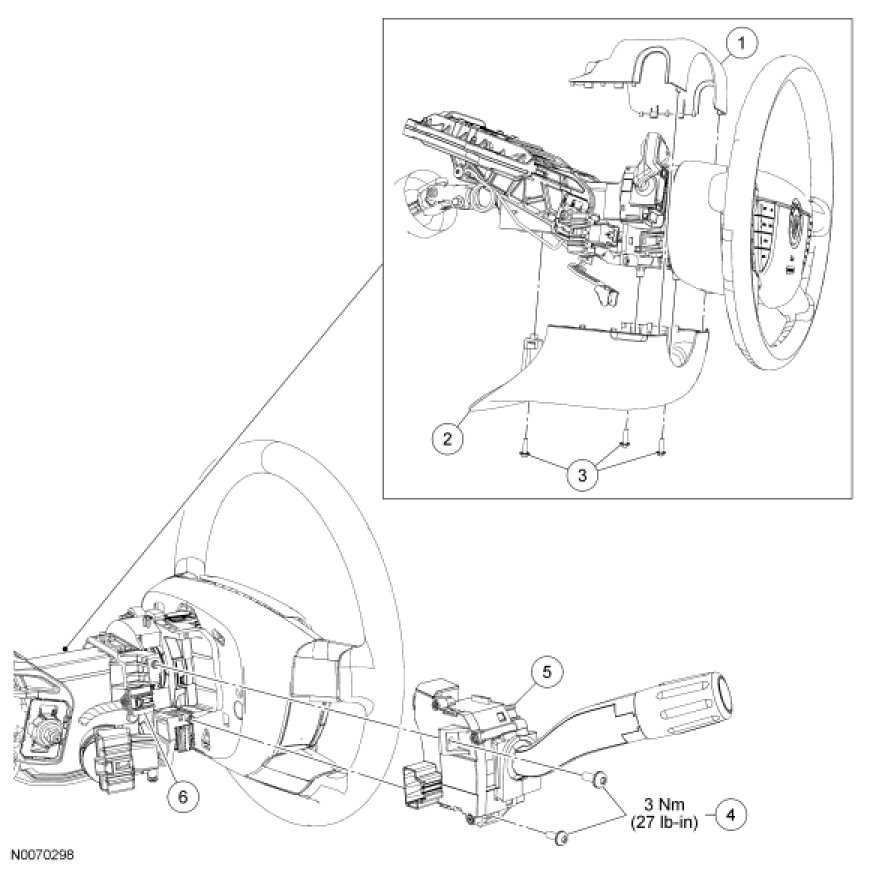

Steering Column Multifunction Switch









Removal and Installation

1. Remove the 3 steering column shroud screws.

2. Separate and remove the upper and lower steering column shrouds.

3. Disconnect the multifunction switch electrical connector.

4. Remove the 2 screws and the multifunction switch.
- To install, tighten to 3 Nm (27 lb-in).

5. To install, reverse the removal procedure.
