Occupant Classification System Module Connector - C3285

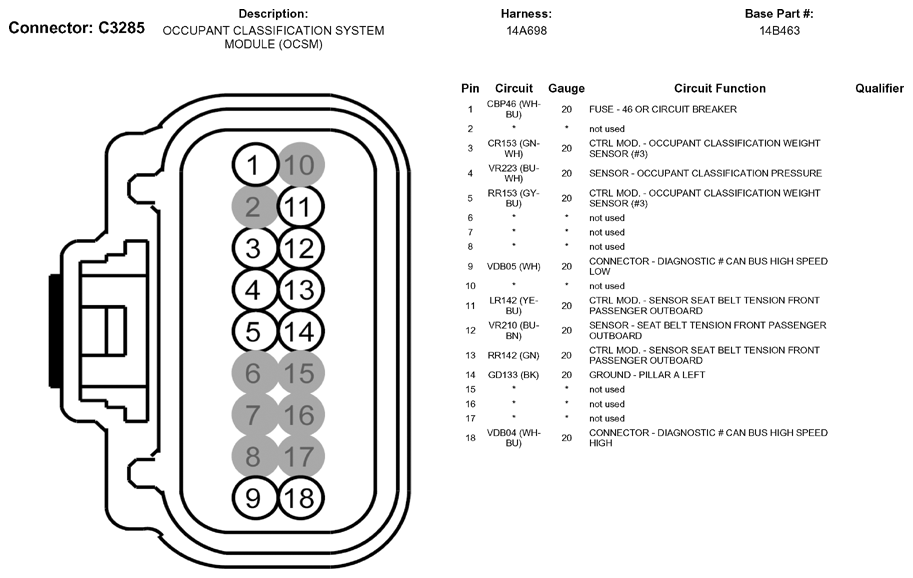

Fig 1: Occupant Classification System Module Connector End View (C3285)
G05790183Courtesy of FORD MOTOR CO.
