Driver Seat Module (DSM): Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration |
Tool Name |
Tool Number |
|
|
Heavy-Duty Riveter |
501-D011 (D80L-23200-A) |
Courtesy of FORD MOTOR CO.

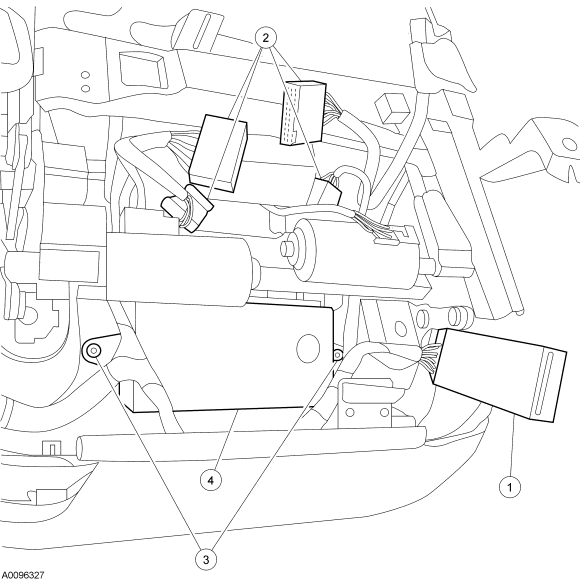

| Item |
Part Number |
Description |
| 1 |
14C724 |
Climate controlled seat module (if equipped) |
| 2 |
- |
Driver seat module (DSM) electrical connectors (part of 14A699) |
| 3 |
- |
DSM rivets (2 required) |
| 4 |
14C708 |
DSM |
