Occupant Classification Sensor - Original Equipment: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) | software with appropriate hardware, or equivalent scan tool |

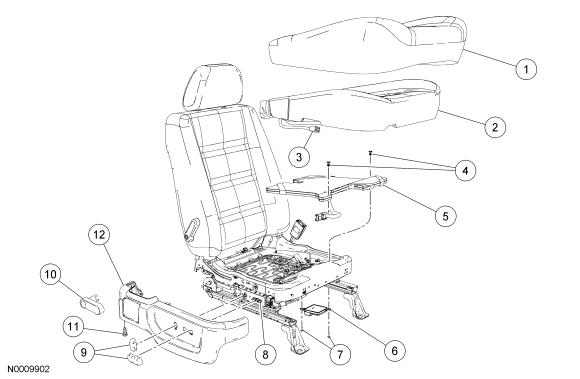

| Item | Part Number | Description |
|---|---|---|
| 1 | 62900 | Seat cushion trim cover |
| 2 | - | Seat cushion foam pad |
| 3 | - | Cushion heated seat element electrical connector (part of 14A698) (if equipped) |
| 4 | - | Occupant classification system (OCS) bladder pin-type retainers |
| 5 | - | OCS bladder, hose and pressure sensor |
| 6 | - | Occupant classification system module (OCSM) |
| 7 | - | OCSM rivets |
| 8 | 14A701 | Seat control switch (if equipped) |
| 9 | - | Power seat switch knobs (if equipped) |
| 10 | 620A90 | Manual recline handle (if equipped) |
| 11 | - | Seat side trim cover screw |
| 12 | 62184 | Seat side trim cover |
