Occupant Classification Sensor - Service Kit: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) | software with appropriate hardware, or equivalent scan tool |

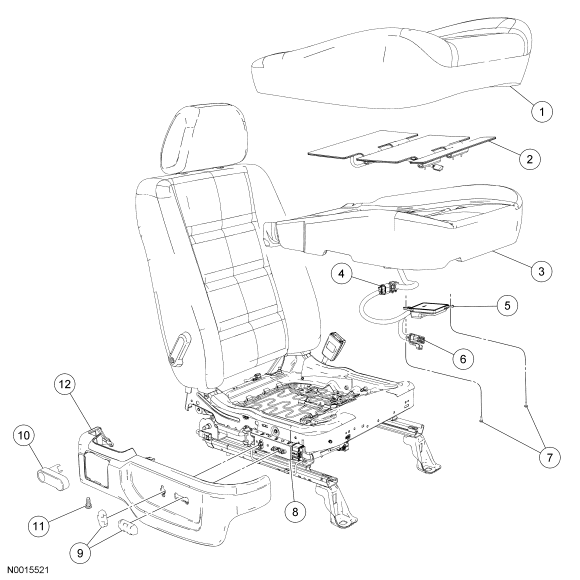

| Item | Part Number | Description |
|---|---|---|
| 1 | 62900 | Seat cushion trim cover |
| 2 | - | Seat cushion heated seat element (if equipped) |
| 3 | - | Seat cushion foam pad (part of occupant classification system [OCS] service kit 603B02) |
| 4 | - | OCS pressure sensor (part of OCS service kit 603B02) |
| 5 | - | Occupant classification system module (OCSM) (part of service kit 603B02) |
| 6 | - | OCS service kit electrical connector (part of OCS service kit 603B02) |
| 7 | - | OCSM rivets (part of OCS service kit 603B02) |
| 8 | 14A701 | Power seat switch (if equipped) |
| 9 | - | Power seat switch knobs (if equipped) |
| 10 | 620A90 | Manual recline handle (if equipped) |
| 11 | - | Seat cushion side shield screw |
| 12 | 62184 | Seat side trim cover |
