Safety Canopy Module - Taurus X: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

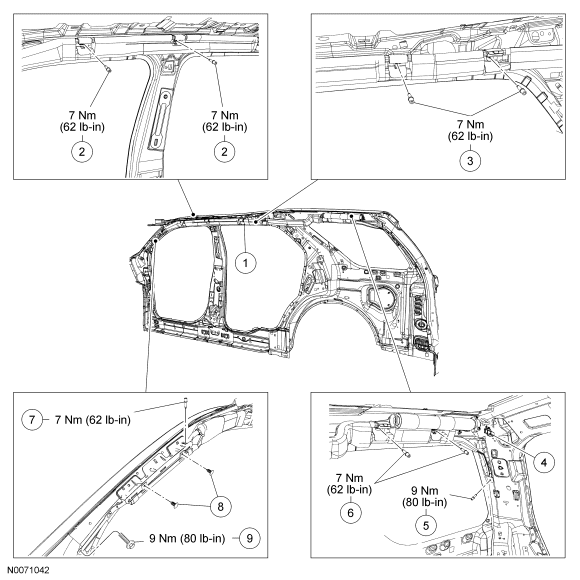

| Item | Part Number | Description |
|---|---|---|
| 1 | 042D94 RH/ 042D95 LH | Safety canopy module |
| 2 | W505255 | Safety canopy module bolts |
| 3 | W505255 | Safety canopy module bolts |
| 4 | - | Safety canopy module electrical connector and pin-type retainer |
| 5 | W710176 | Rear safety canopy module tether bracket bolt |
| 6 | W505255 | Safety canopy module bolts |
| 7 | - | Safety canopy module bolt |
| 8 | - | Pin-type retainers |
| 9 | W710176 | Front safety canopy module tether bracket bolt |
