Side Air Bag Module: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) | software with appropriate hardware, or equivalent scan tool |

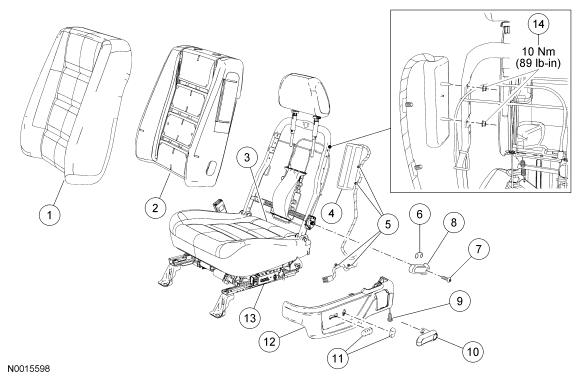

| Item | Part Number | Description |
|---|---|---|
| 1 | 64416 | Seat backrest trim cover |
| 2 | 64810 | Seat backrest foam pad |
| 3 | - | Seat cushion trim cover rear J-clip and rear hook-and-loop strip (part of 62900) |
| 4 | 611D10 | Side air bag module |
| 5 | - | Side air bag module wire routing clips (part of 611D10) |
| 6 | - | Manual lumbar handle clip (driver seat only) |
| 7 | - | Manual lumbar handle screw (passenger seat only) |
| 8 | 610A76 | Manual lumbar handle |
| 9 | - | Seat cushion side shield screw |
| 10 | 620A90 | Manual recline handle (if equipped) |
| 11 | - | Power seat switch knobs (if equipped) |
| 12 | 62184 | Seat cushion side shield |
| 13 | 14A701 | Power seat switch (if equipped) |
| 14 | W520111 | Side air bag module nuts (2 required) |
