Strut and Spring Assembly: Notes

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

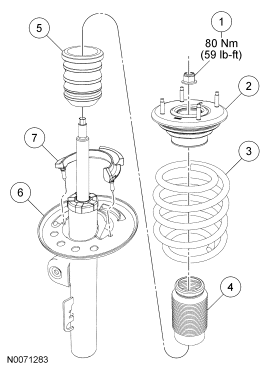

Fig 1: Strut and Spring Assembly With Torque Specification
GF0045737Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W520215 Strut rod nut
2 18183 Upper strut mount
3 5310 Spring
4 18A047 Dust boot
5 - Jounce bumper
6 18045 Strut
7 5414 Lower spring isolator
