Fire Suppression System Module (FSSM): Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Always wear eye protection when servicing a vehicle. Failure to follow this instruction may result in serious personal injury.
NOTE:
Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

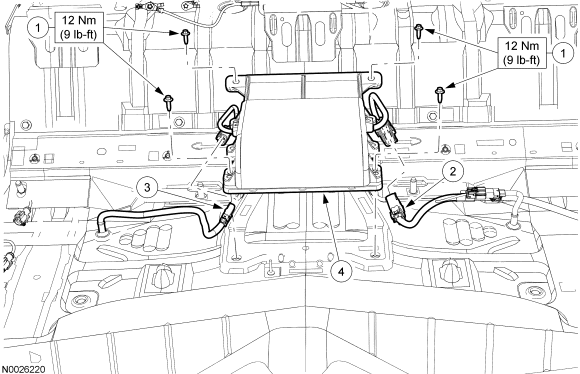

| Item | Part Number | Description |
|---|---|---|
| 1 | N808002 | Fire suppression system module (FSSM) bolts (4 required) |
| 2 | - | FSSM electrical connector (part of 14A005) |
| 3 | - | FSSM electrical connector (part of 14C369) |
| 4 | 19H279 | FSSM |
