Front Heated Seat Module Connector - C3304

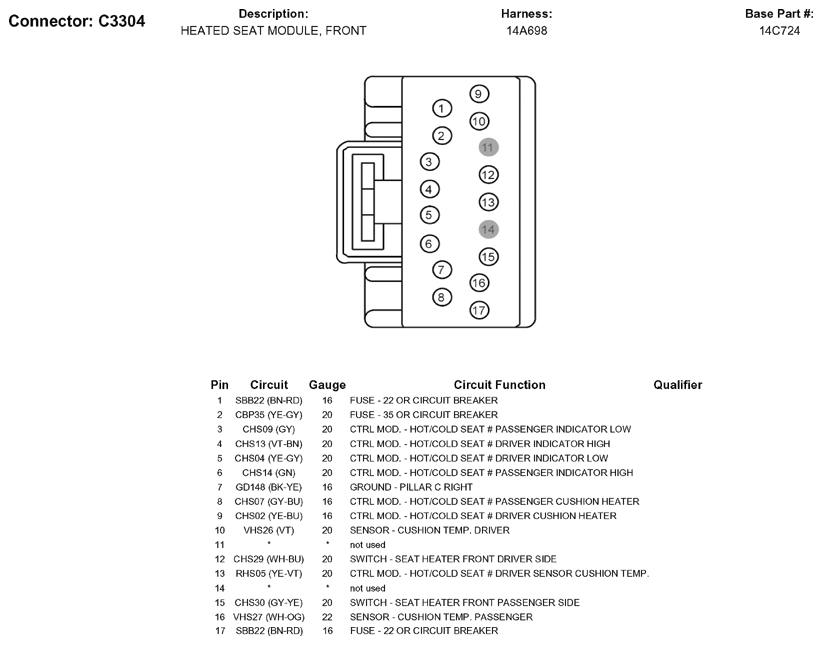

Fig 1: Front Heated Seat Module Connector End View (C3304)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
