Exhaust Gas Recirculation (EGR) System Components - Exploded View
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

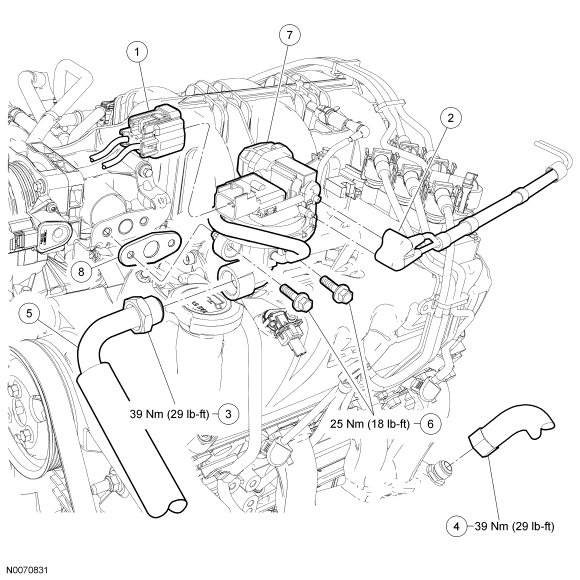

Fig 1: Exploded View Of Exhaust Gas Recirculation (EGR) System Components With Torque Specifications - 4.0L SOHC Engine
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | EGR system module electrical connector |
| 2 | 9E498 | Engine vacuum harness-to-EGR system module connector |
| 3 | - | EGR system module tube-to-EGR system module fitting (part of 9E469) |
| 4 | - | EGR system module tube-to-exhaust manifold fitting (part of 9E469) |
| 5 | 9E469 | EGR system module tube |
| 6 | W500224 | EGR system module bolts (2 required) |
| 7 | 9Y456 | EGR system module |
| 8 | 9D476 | EGR system module gasket |

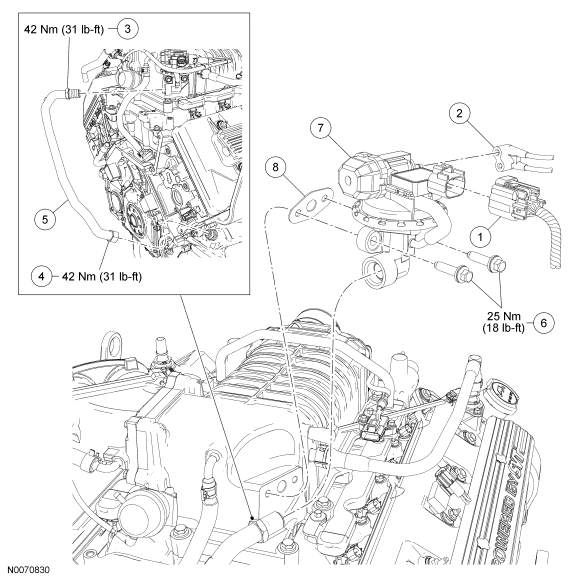

Fig 2: Exploded View Of Exhaust Gas Recirculation (EGR) System Components With Torque Specifications - 5.4L 4V Engine
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | EGR system module electrical connector |
| 2 | 9E498 | Engine vacuum harness-to-EGR system module connector |
| 3 | - | EGR system module tube-to-EGR system module fitting (part of 9D477) |
| 4 | - | EGR system module tube-to-exhaust manifold fitting (part of 9D477) |
| 5 | 9D477 | EGR system module tube |
| 6 | W500224 | EGR system module bolts (2 required) |
| 7 | 9Y456 | EGR system module |
| 8 | 9D476 | EGR system module gasket |
- For additional information, refer to the procedures.
