Removal And Installation
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The right side lower instrument panel cover has been removed for clarity. The Steering Effort Control Module (SECM) is located on a bracket behind the carpet between the firewall and right side kick panel.

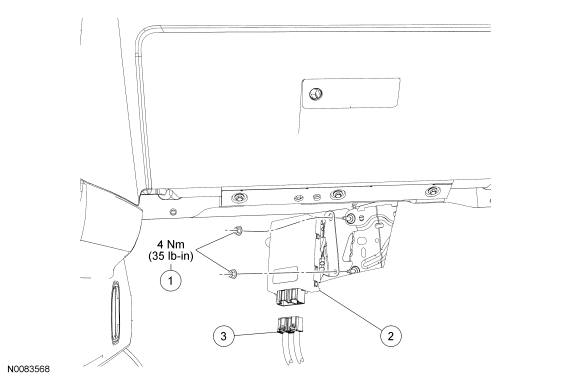

| Item | Part Number | Description |
|---|---|---|
| 1 | W520412 | Steering Effort Control Module (SECM) nuts (2 required) |
| 2 | 3C579 | SECM |
| 3 | - | SECM electrical connectors (2 required) (part of 14401) |
- Position the carpet aside.
- Disconnect the 2 Steering Effort Control Module (SECM) electrical connectors.
- Remove the 2 nuts and the SECM.
- To install, tighten to 4 Nm (35 lb-in).
- To install, reverse the removal procedure.
