Master window adjust switch: Schematic

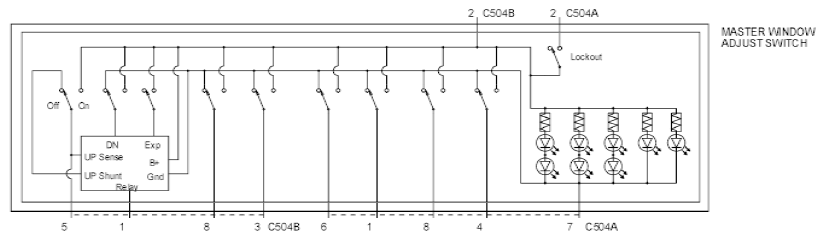

Fig 1: Master window adjust switch Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
