Transmission Main Components - Sectional View

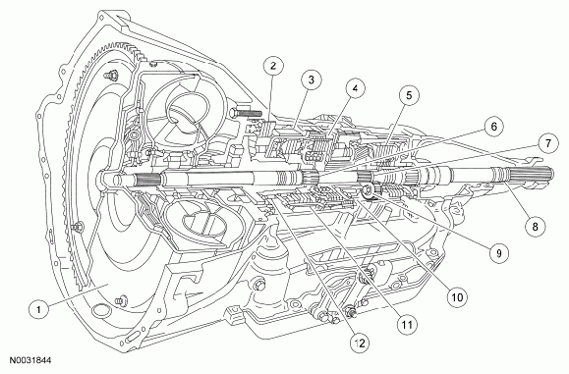

Fig 1: Sectional View Of Transmission Main Components Location
G06140046Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 7902 Torque converter
2 7B164 Intermediate clutch (friction)
3 7B164 Reverse clutch (friction)
4 7B164 Forward clutch (friction)
5 7B164 Direct clutch (friction)
6 7F207 Forward clutch cylinder and shaft
7 7F351 Shaft - intermediate stub
8 7060 Output shaft
9 7A089 Planetary One-Way Clutch (OWC)
10 7D095 Reverse clutch band
11 7F196 Overdrive (O/D) band
12 7A089 Intermediate OWC
