Timing Cover

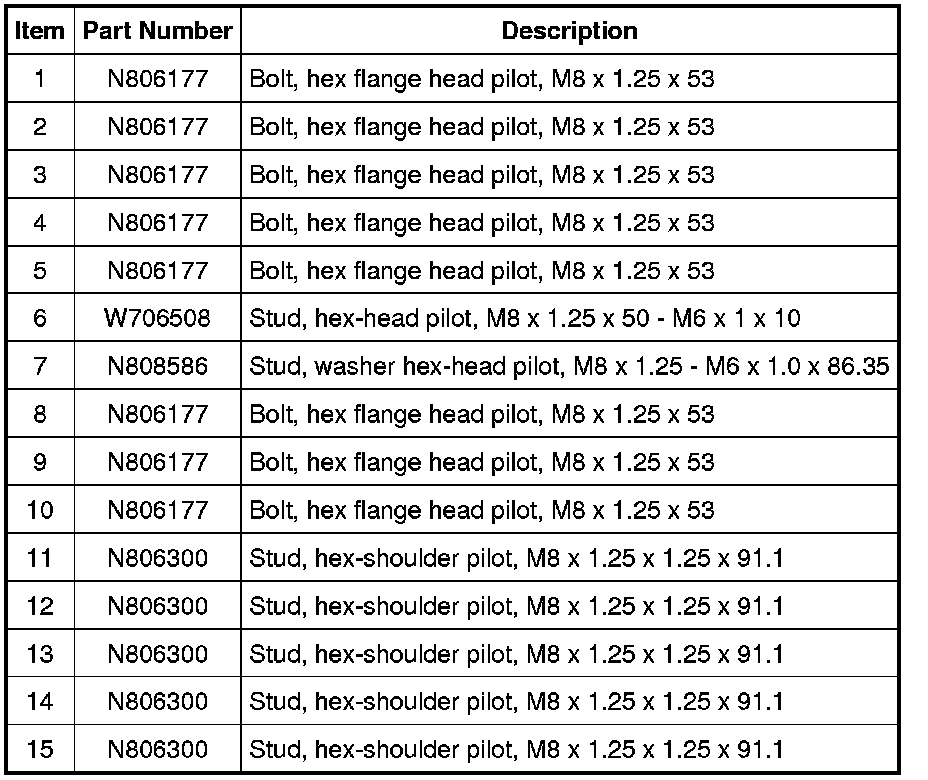

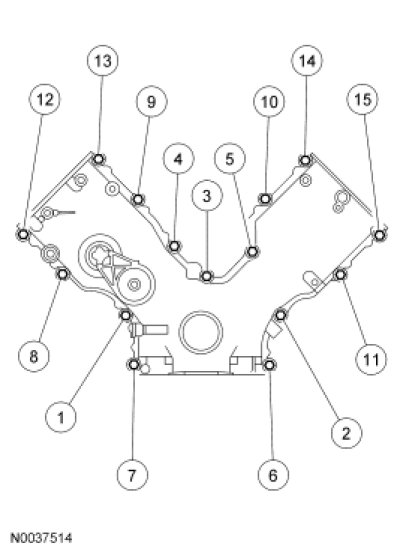

Tighten the front cover fasteners in the sequence shown to 25 Nm (18 lb-ft).

Tighten the 4 front oil pan bolts in 2 stages.
Stage 1: Tighten to 20 Nm (177 lb-in).
Stage 2: Tighten an additional 60 degrees.
