Alternator: Service and Repair

Generator

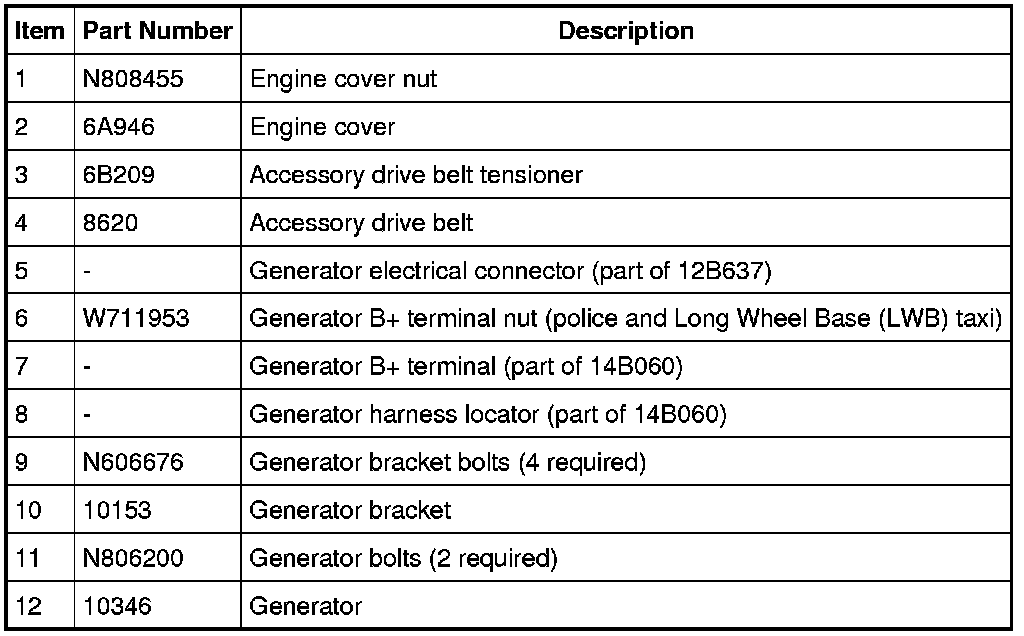

Removal and Installation

1. Disconnect the battery. For additional information, refer to Battery.

2. Remove the nut and the engine cover.
- To install, tighten to 10 Nm (89 lb-in).

3. Rotate the accessory drive belt tensioner clockwise and position the accessory drive belt aside.

4. Disconnect the generator electrical connector.

5. Position the protective boot aside, remove the nut and position the generator B+ terminal aside.
- To install, tighten to 12 Nm (106 lb-in).

6. Remove the battery cable harness pushpin from the generator bracket.

7. Remove the 4 bolts and the generator bracket.
- To install, tighten to 10 Nm (89 lb-in).

8. Remove the 2 bolts and the generator.
- To install, tighten to 25 Nm (18 lb-ft).

9. If necessary, remove the cap, nut and the radial adapter.
- To install, tighten to 10 Nm (89 lb-in).

10. To install, reverse the removal procedure.
