Driver Side Air Bag Module Connector - C3321
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Driver Side Air Bag Module Connector - C3321

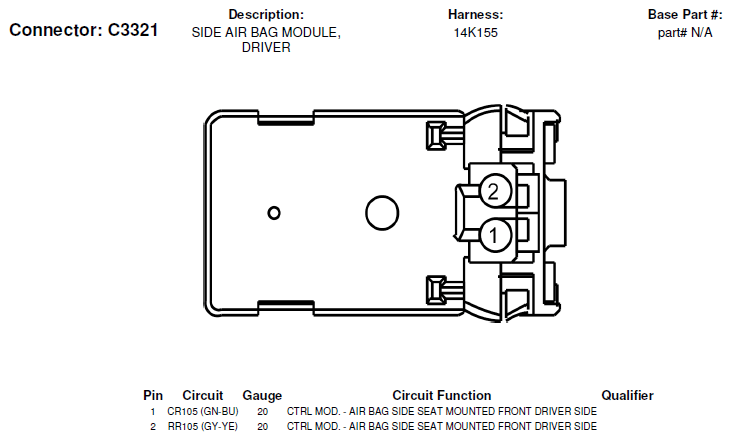

Fig 1: Driver Side Air Bag Module Connector End View (C3321)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
