Selector Lever Cable: Notes

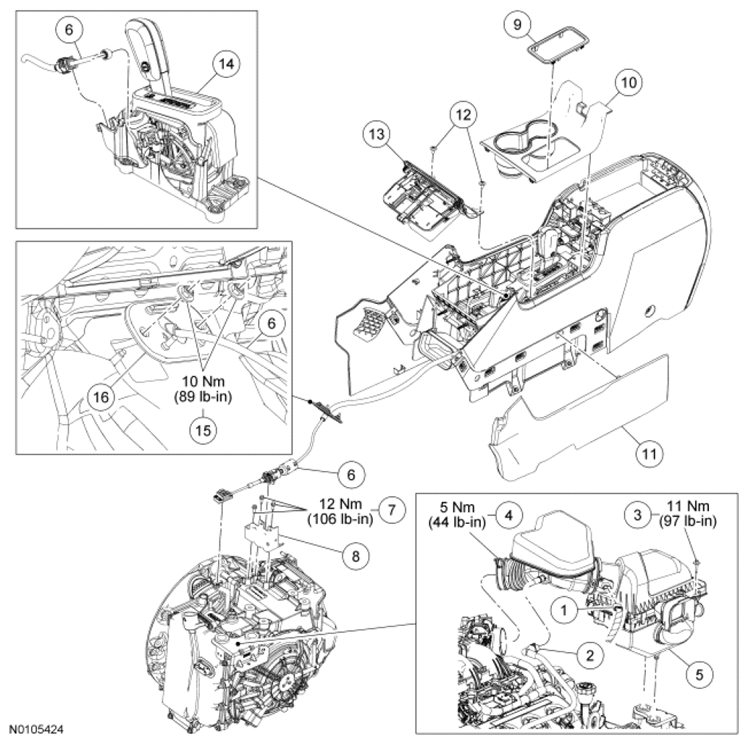

DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Mass Air Flow (MAF) sensor electrical connector |
| 2 | 6758 | Engine vent tube |
| 3 | N606678 | Air Cleaner (ACL) assembly bolt |
| 4 | 9C632 | ACL outlet tube clamp |
| 5 | 9C662 | ACL assembly |
| 6 | 7E395 | Selector lever cable |
| 7 | W500213 | Selector lever cable bracket bolts |
| 8 | 7B229 | Selector lever cable bracket |
| 9 | 78061A16 | Selector lever trim ring (MKX only) |
| 10 | 78045A76 | Center console trim cover |
| 11 | 78045A06 | Center console side cover |
| 12 | W706092 | Power outlet trim cover fasteners |
| 13 | 78047A04 | Power outlet trim cover |
| 14 | 7K004 | Selector lever assembly |
| 15 | W707142 | Selector lever cable grommet nuts |
| 16 | 57809 | Selector lever cable grommet |
