Solenoid Body Assembly: Assembly

Install a new solenoid body assembly electrical connector seal.

Fig 1: Installing Solenoid Body Assembly Electrical Connector Seal
Courtesy of FORD MOTOR CO.

NOTE: Do not handle the solenoid body in the leadframe area or by the screens of the solenoid body filter or damage to the solenoid body may occur.

NOTE: Use care not to break the alignment tabs when installing the solenoid body filter. Damage to the transaxle will occur if the solenoid body is not correctly aligned.

NOTE: Make sure that the filter passage areas are clean of foreign material before installing the filter. Damage to the transaxle will occur if the filter passages are not clean.

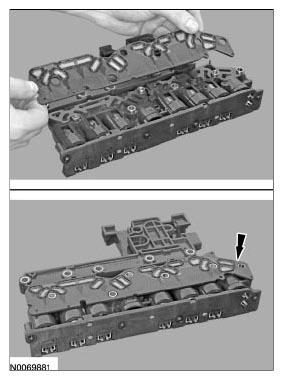

Fig 2: Installing Solenoid Body Filter Assembly

Courtesy of FORD MOTOR CO.

Install a new solenoid body filter assembly by pushing it straight down onto the alignment tabs.
