Main Control Cover: Material
ITEM SPECIFICATION
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLV |
MERCON® LV |

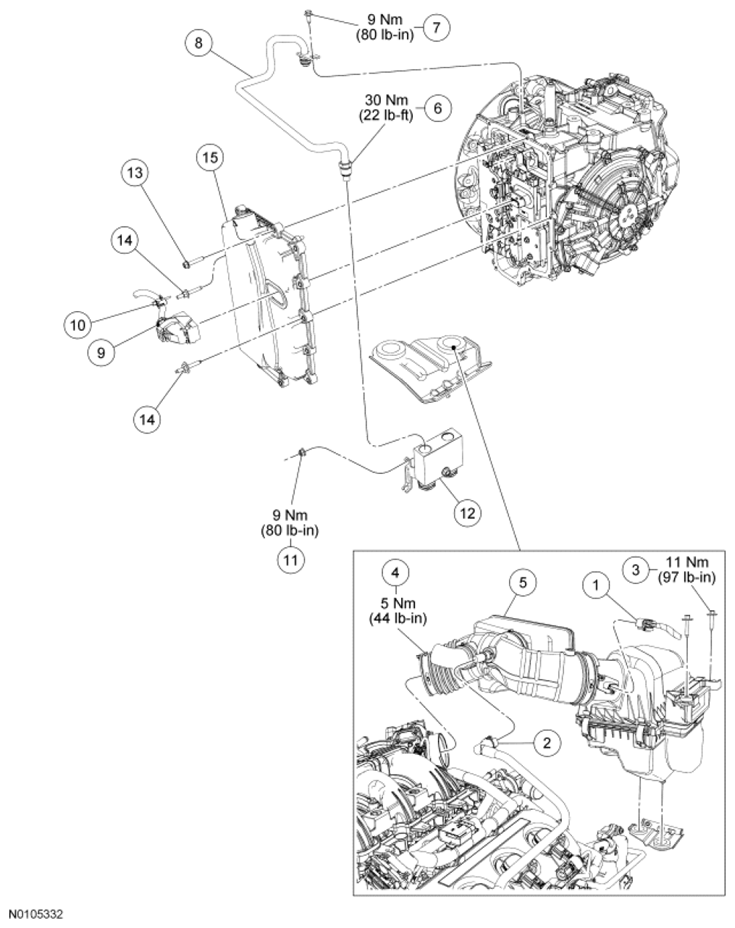

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Electrical connector - Mass Air Flow (MAF) sensor |
| 2 | 6758 | Tube assembly - crankcase vent |
| 3 | N606678 | Bolt - Air Cleaner (ACL) bracket |
| 4 | 9C632 | Clamp - ACL outlet pipe |
| 5 | 9C662 | ACL assembly |
| 6 | - | Nut - transmission fluid cooler tube (part of 7H420) |
| 7 | W711538 | Bolt - transmission fluid cooler tube |
| 8 | 7H420 | Tube - transmission fluid cooler |
| 9 | 7A488 | Connector - transaxle harness |
| 10 | 14A169 | Retainer - transaxle harness |
| 11 | W520101 | Nut - bypass valve |
| 12 | 7H322 | Valve - transaxle fluid cooler bypass |
| 13 | 7J289 | Bolt - solenoid body cover (11 required) |
| 14 | W708442 | Studbolts - solenoid body cover (3 required) |
| 15 | 7G004 | Cover - solenoid body |
