Stator Support and Gear Assembly: Assembly

  1. Install the Support Solid Seal Installer 307-579/3 on the stator support assembly.
    Fig 1: Installing Support Solid Seal Installer 307-579/3
    G06076300Courtesy of FORD MOTOR CO.
  2. Install a new seal on the Support Solid Seal Installer 307-579/3.
    Fig 2: Installing Seal On Support Solid Seal Installer 307-579/3
    G06068456Courtesy of FORD MOTOR CO.
  3. Install the Support Solid Seal Installer 307-579/2 on the Support Solid Seal Installer 307-579/3 and slide the seal in to the groove on the stator support assembly.
    Fig 3: Installing Support Solid Seal Installer 307-579/2 On Support Solid Seal Installer 307-579/3
    G06076302Courtesy of FORD MOTOR CO.
  4. Remove the Support Solid Seal Installer 307-579 (includes 307-579/2 and 307-579/3) from the stator support assembly.
    Fig 4: Removing Support Solid Seal Installer 307-579
    G06068458Courtesy of FORD MOTOR CO.
  5. Install the Support Solid Seal Installer 307-579/1 on the stator support assembly to size the seal.
    Fig 5: Locating Support Solid Seal Installer 307-579/1 On Stator Support Assembly
    G06076304Courtesy of FORD MOTOR CO.
  6. Install a new gasket on the stator support assembly.
    Fig 6: Locating Stator Support Assembly
    G06076305Courtesy of FORD MOTOR CO.
  7. Position the stator support feed tube assembly in place and install the bolts hand-tight  .
    Fig 7: Locating Stator Support Feed Tube Assembly
    G06076306Courtesy of FORD MOTOR CO.
  8. Tighten the 2 stator support feed tube Torx head bolts.
    • Tighten to 7 Nm (62 lb-in).
      Fig 8: Tightening Stator Support Feed Tube Torx Head Bolts
      G06068462Courtesy of FORD MOTOR CO.
  9. Tighten the 2 stator support feed tube hex-head bolts.
    • Tighten to 12 Nm (106 lb-in).
      Fig 9: Tightening Stator Support Feed Tube Hex-Head Bolts
      G06068463Courtesy of FORD MOTOR CO.
  10. Install a new input shaft seal on the Support Seal Installer 307-585.
    Fig 10: Installing Input Shaft Seal On Support Seal Installer 307-585
    G06068464Courtesy of FORD MOTOR CO.
  11. Using the Support Seal Installer 307-585, install the input shaft seal.
    Fig 11: Installing Input Shaft Seal Using Support Seal Installer 307-585
    G06076310Courtesy of FORD MOTOR CO.
  12. Remove the Support Seal Installer 307-579/1 from the stator support assembly.
    Fig 12: Removing Support Seal Installer 307-579/1 From Stator Support Assembly
    G06076311Courtesy of FORD MOTOR CO.
  13. Install the drive sprocket thrust washer.
    Fig 13: Installing Drive Sprocket Thrust Washer
    G06068467Courtesy of FORD MOTOR CO.

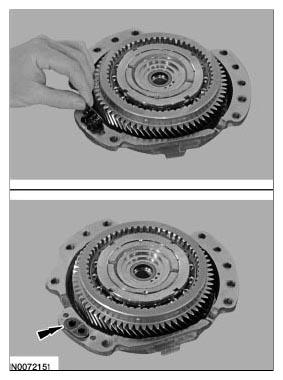

  14. Install a new stator support assembly seal.
    Fig 14: Installing Stator Support Assembly Seal
    G06068468Courtesy of FORD MOTOR CO.
